PA-R-250-8 Industrial Actuators PA-R-250-8 Industrial Actuators

PA-R-250-8
Industrial Actuators

The PEGASUS PA-R-250-8 is the right servo-actuator for applications with high requirements in terms of powerful torque, high speeds, and precise positioning. With its BL-DC-technology (brushless DC motor) and PA-ME contact-less position sensor it combines extraordinary reliability and precision.

Configuration and request     Start

Characteristics

Continuous torque 300 Ncm (424,84 oz-in)
Max. torque > 500 Ncm (> 708,06 oz-in)
Operating voltage 12 or 24 V DC
No load speed 195 °/sec @12VDC
210 °/sec @24VDC
Weight 285 gr. (10,052 oz)
Travel angle ± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Board digital - programmable - with differential, analog sensor feedback
Signal A: PWM signal, TTL level (standard configuraton),
B: PWM signal, differential (RS485 transceiver) (optional),
C: RS485 Data protocol (optional),
N: CANopen CiA 402 (optional)
Motor BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 6 ball races with rigid or optional with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation

Documents - Datasheets

Specifications Download PDF 175 KB
drawing_PA-R-250-8-X-XX-X-XXX-60, Actuators with DE9 connector Download PDF 180 KB
drawing_PA-R-250-8-X-XX-X-XXX-63, Actuators with Glenair 801 connector Download PDF 181 KB
drawing_PA-R-250-8-X-XX-X-XXX-67, Actuators with cable pigtail Download PDF 182 KB
performance-graph_PA-R-250-8-X-12-X-XXX-6X Download PDF 103 KB
performance-graph_PA-R-250-8-X-24-X-XXX-6X Download PDF 110 KB

Accessories

PN-14850011

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info
PN-14850006

Adapter MTA100-DE9 for Actuators without connector

Actuators ordered with Pig Tail but without connector will be manufactured with a Tyco MTA100 connector, to connect those units to the PA-Control 2 the MTA100-DE9 adapter is required.

PN-14850006
PN-14850005

Programming cable for R-205, R-250 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-205 or R-250 type Actuators with Glenair Series 801 size 6-7 connector to the PA-Control 2.

PN-14850005
PN-12508051

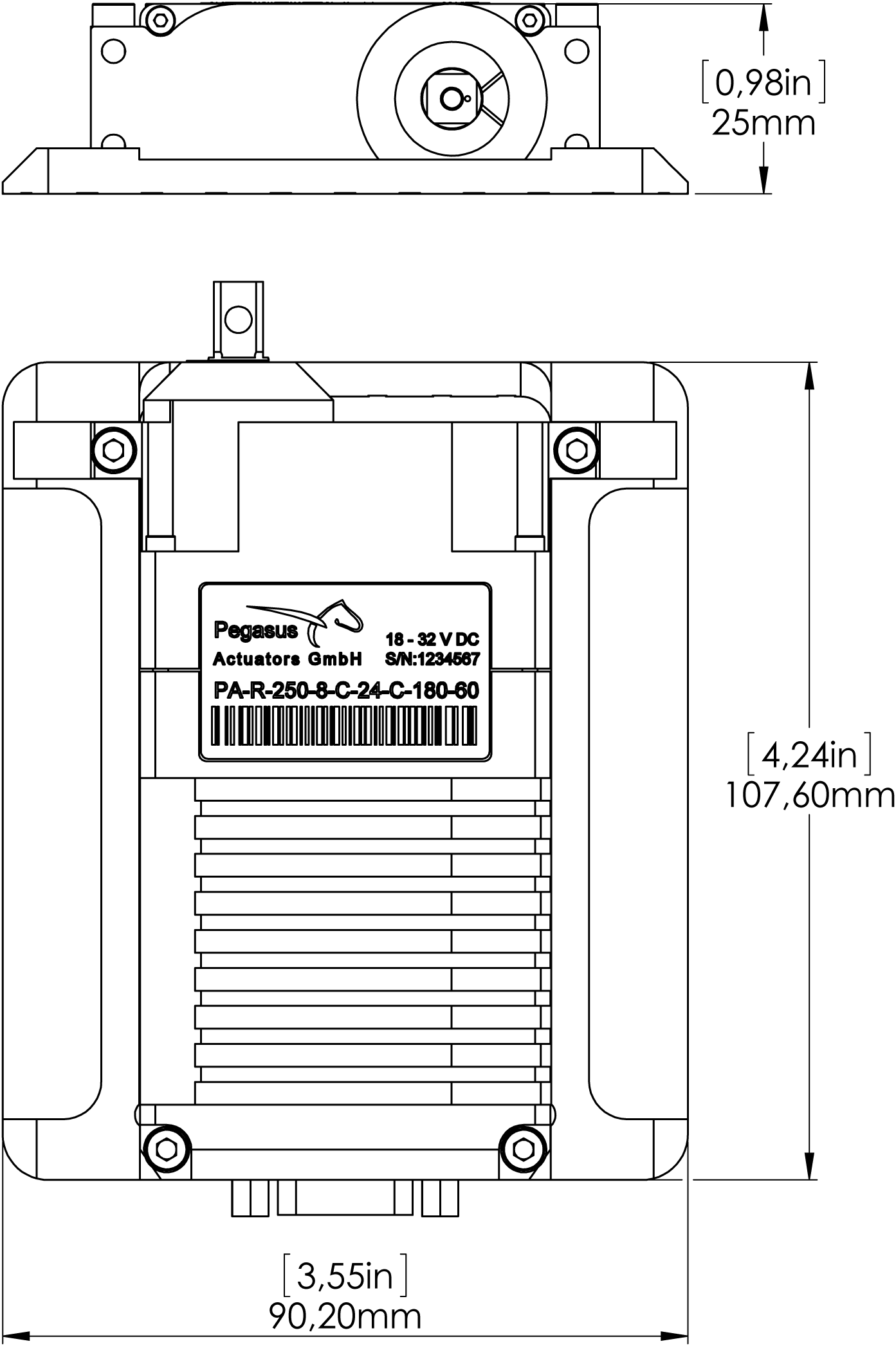

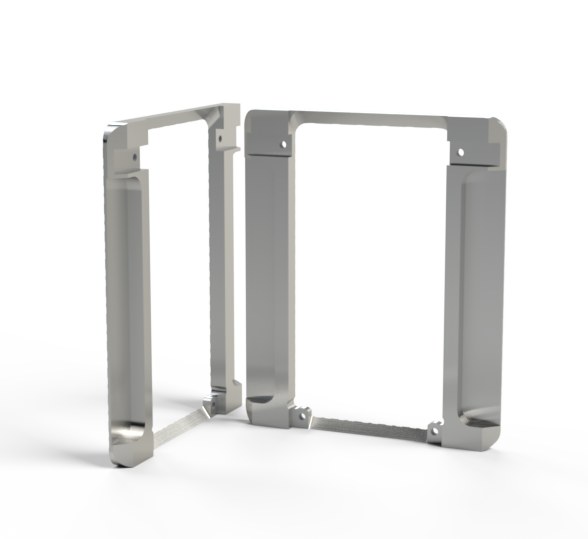

PA-IF-250-8-01

Installation frame for R-250-8 Actuators.

PN-12508051
PN-12509033

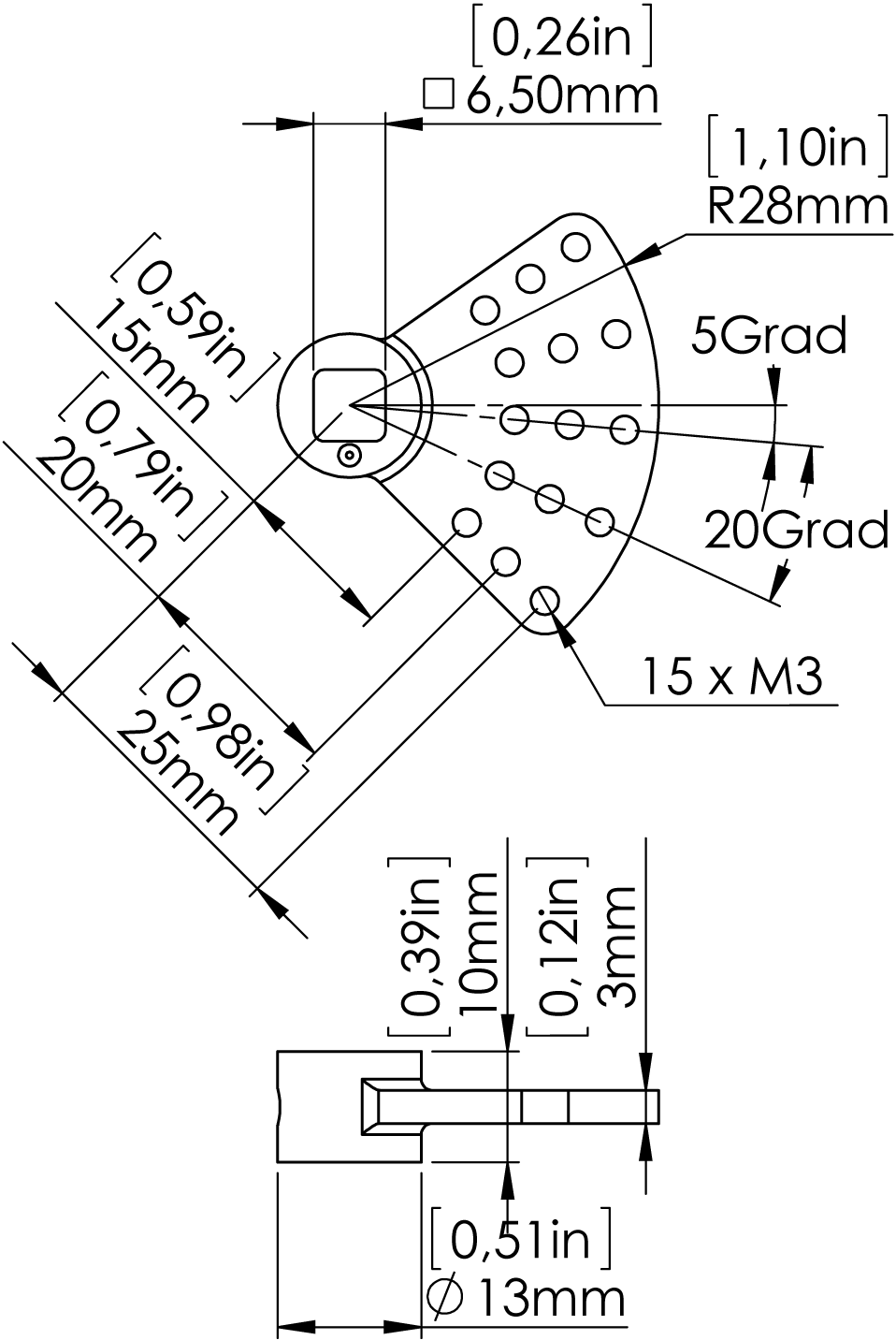

PA-UL-003

Aluminum universal lever with threads. For R-250 or RR-260 type Actuators, 6,5mm square

PN-12509033 Download PDF
PN-12509034

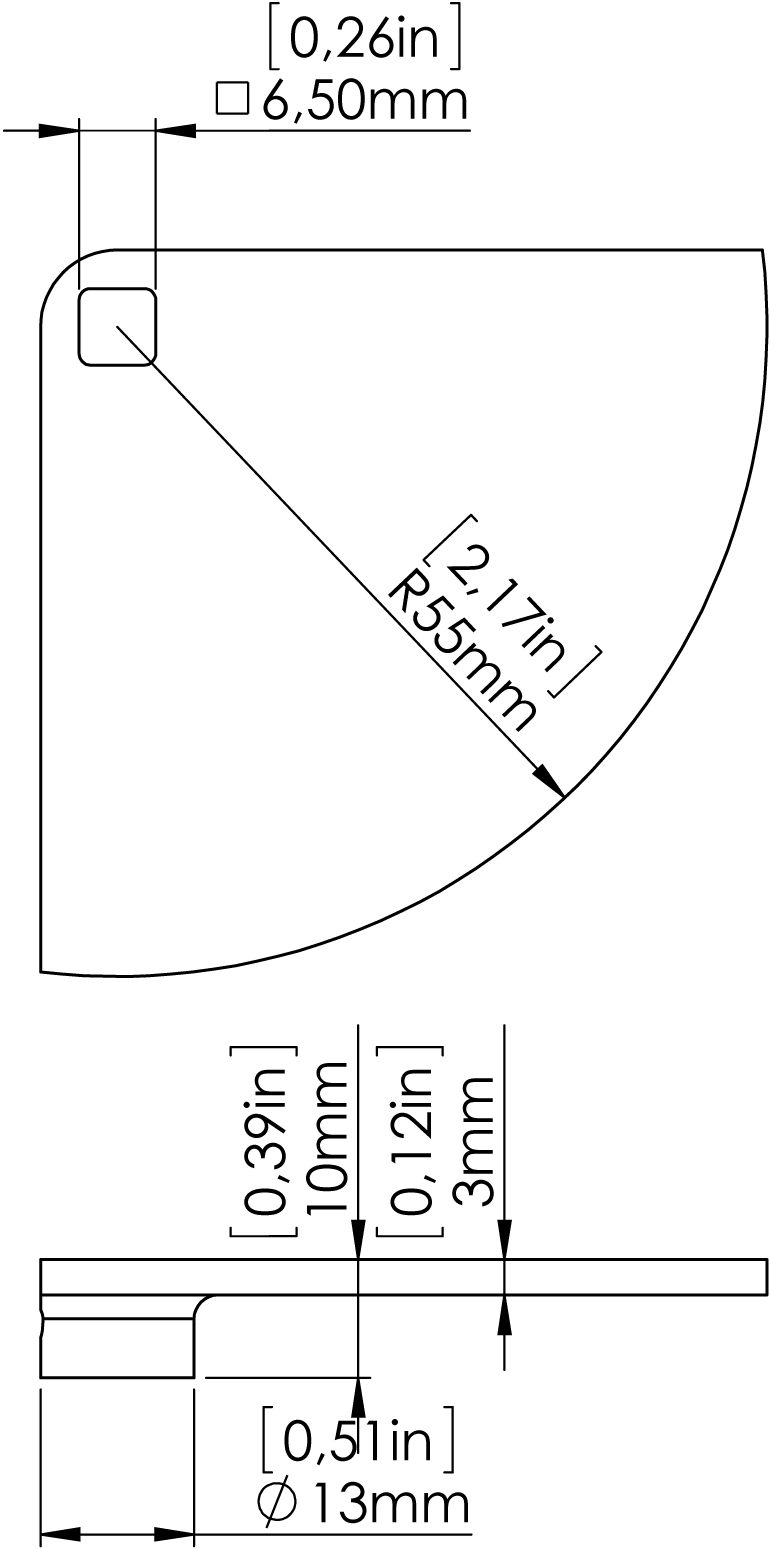

PA-UL-007

Aluminum universal lever blank quarter. For R-250 or RR-260 type Actuators, 6,5mm square.

PN-12509034 Download PDF
PN-12509043

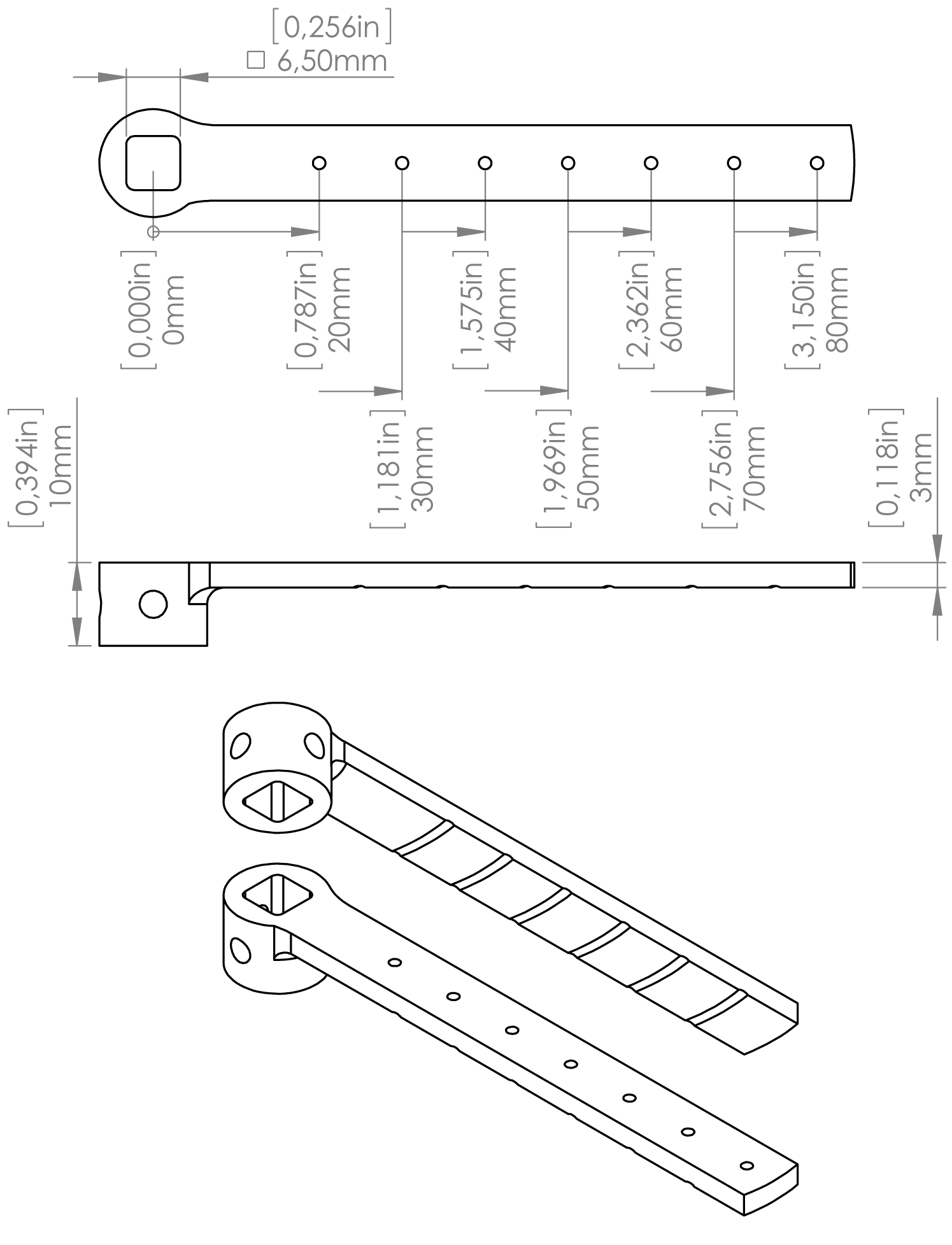

PA-UL-103

Aluminum universal lever with grooves to create holes or threads and to shorten. For R-250 or RR-260 type Actuators, 6,5mm square.

PN-12509043 Download PDF
PN-12508101

Extension cable for R-205, R-250, RR-260 Actuators, RA-OPV Clutches with Glenair 801 size 6-7 connector

1m cable with a mating Glenair Series 801 size 6-7 connector mounted and sealed on side 1 and an open end on side 2.

PN-12508101
PN-72509003

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, olive

Glenair 801-007-16NF6-7SA, Aluminum / Cadmium with Olive Drab Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-72509003
PN-74957001

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, black

Glenair 801-007-16ZNU6-7SA, Aluminum / Zinc-Nickel with Black Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-74957001
