PA-R-205-6 Industrial Actuators

PA-R-205-6
Industrial Actuators

The PEGASUS PA-R-205-6 is the power version of our PA-R-205-4 servo-type with a modified software and a much more powerful motor.

Configuration and request     Start

Characteristics

Continuous torque 180 Ncm (254,90 oz-in)
Max. torque > 350 Ncm (> 495,64 oz-in)
Operating voltage 6, 12 or 24 V DC
No load speed 180 °/sec @12VDC
175 °/sec @24VDC
Weight 150 gr. (5,291 oz)
Travel angle ± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Board digital - programmable - with differential, analog sensor feedback
Signal PWM signal, TTL level (standard configuraton)
PWM signal, differential (RS485 transceiver) (optional)
or RS485data protocol (optional)
Motor DC motor, Neodym magnet
Gear train hardened steel, spur gear type, 6 ball races with rigid or optional with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation

Documents - Datasheets

Data Sheet Download PDF 1 MB
drawing_PA-R-205-6-X-XX-X-XXX-X0, Actuators with DE9 connector Download PDF 165 KB
drawing_PA-R-205-6-X-XX-X-XXX-X3, Actuators with Glenair 801 connector Download PDF 170 KB
drawing_PA-R-205-6-X-XX-X-XXX-X7, Actuators with cable pigtail Download PDF 175 KB
performance-graph_PA-R-205-6-X-12-X-XXX-XX Download PDF 115 KB
performance-graph_PA-R-205-6-X-24-X-XXX-XX Download PDF 113 KB

Accessories

PN-14850011

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info
PN-14850006

Adapter MTA100-DE9 for Actuators without connector

Actuators ordered with Pig Tail but without connector will be manufactured with a Tyco MTA100 connector, to connect those units to the PA-Control 2 the MTA100-DE9 adapter is required.

PN-14850006
PN-14850005

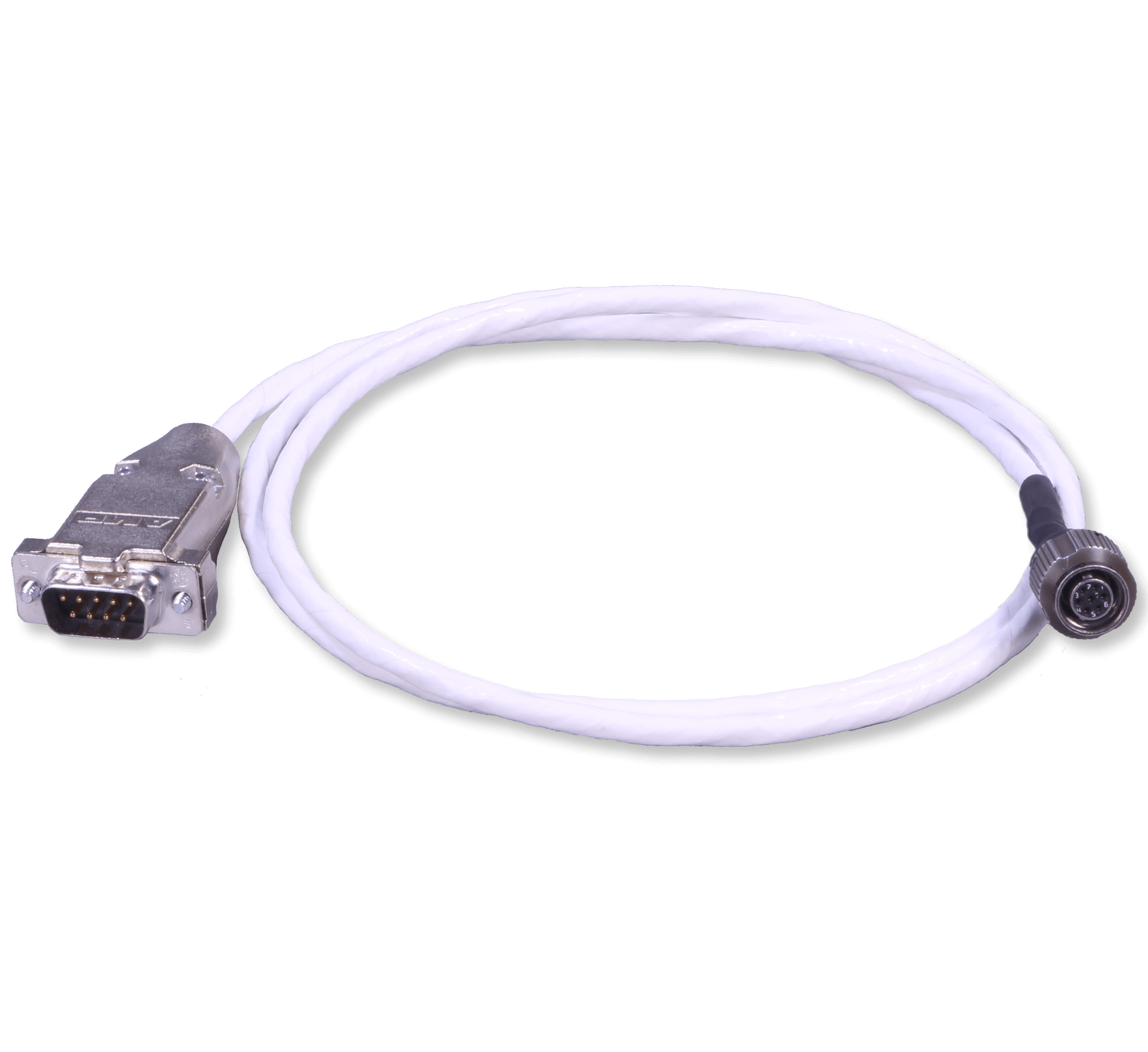

Programming cable for R-205, R-250 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-205 or R-250 type Actuators with Glenair Series 801 size 6-7 connector to the PA-Control 2.

PN-14850005
PN-12056051

PA-IF-205-6-01

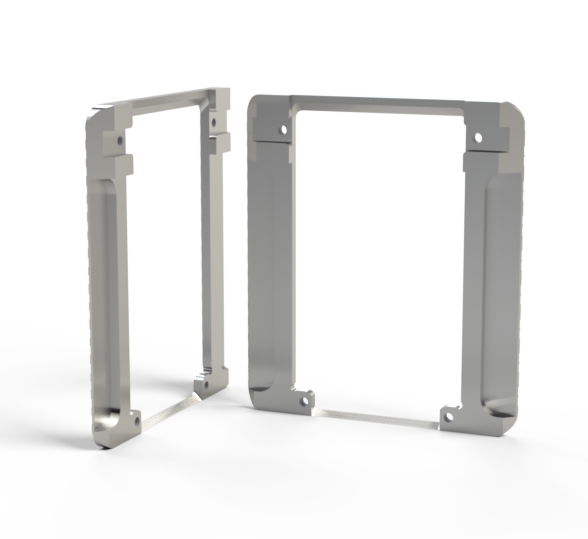

Installation frame for R-205-6 Actuators.

PN-12056051
PN-12054025

PA-UL-001

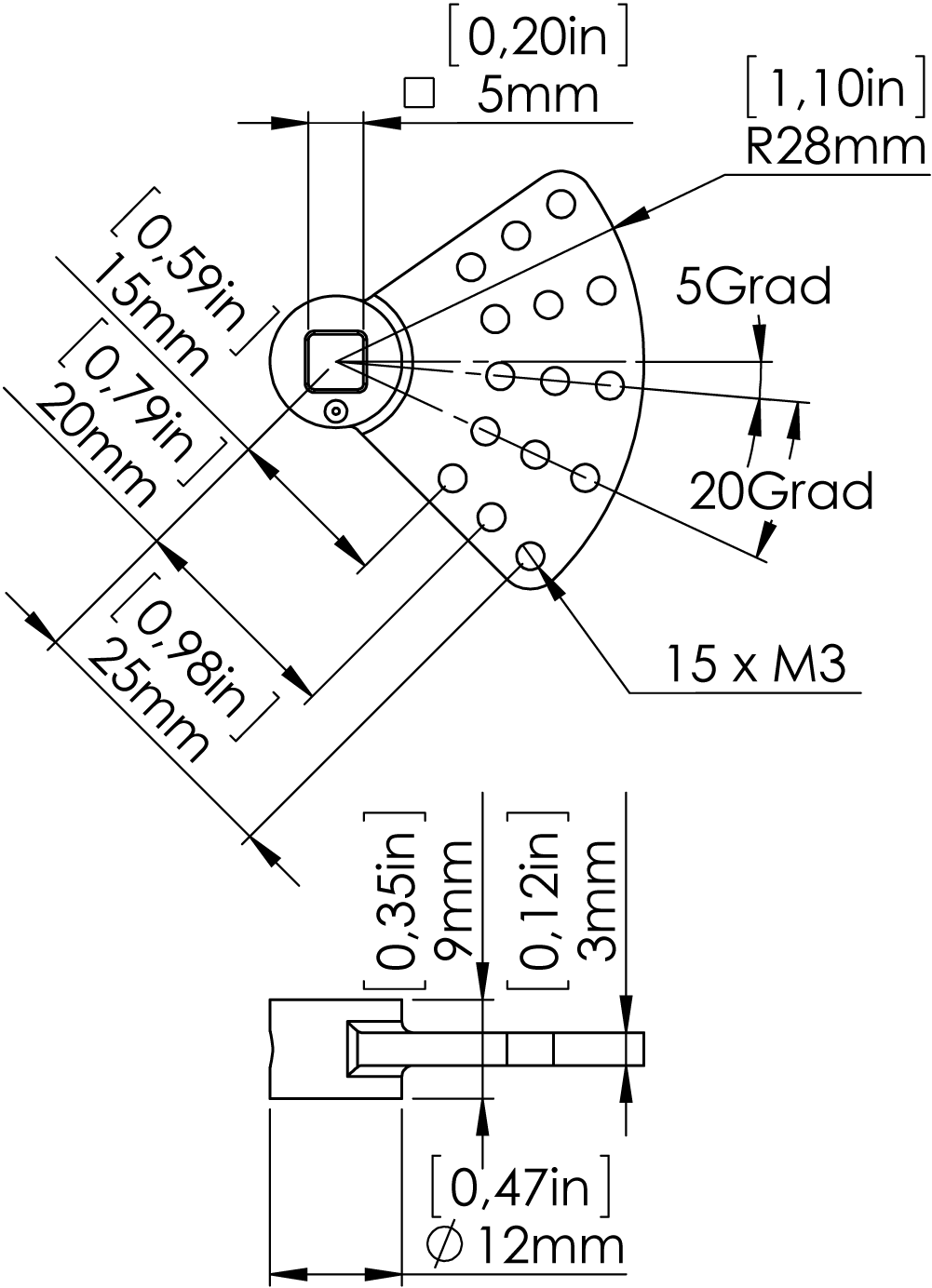

Aluminum universal lever with threads. For R-205 type Actuators, 5mm square.

PN-12054025 Download PDF
PN-12054026

PA-UL-002

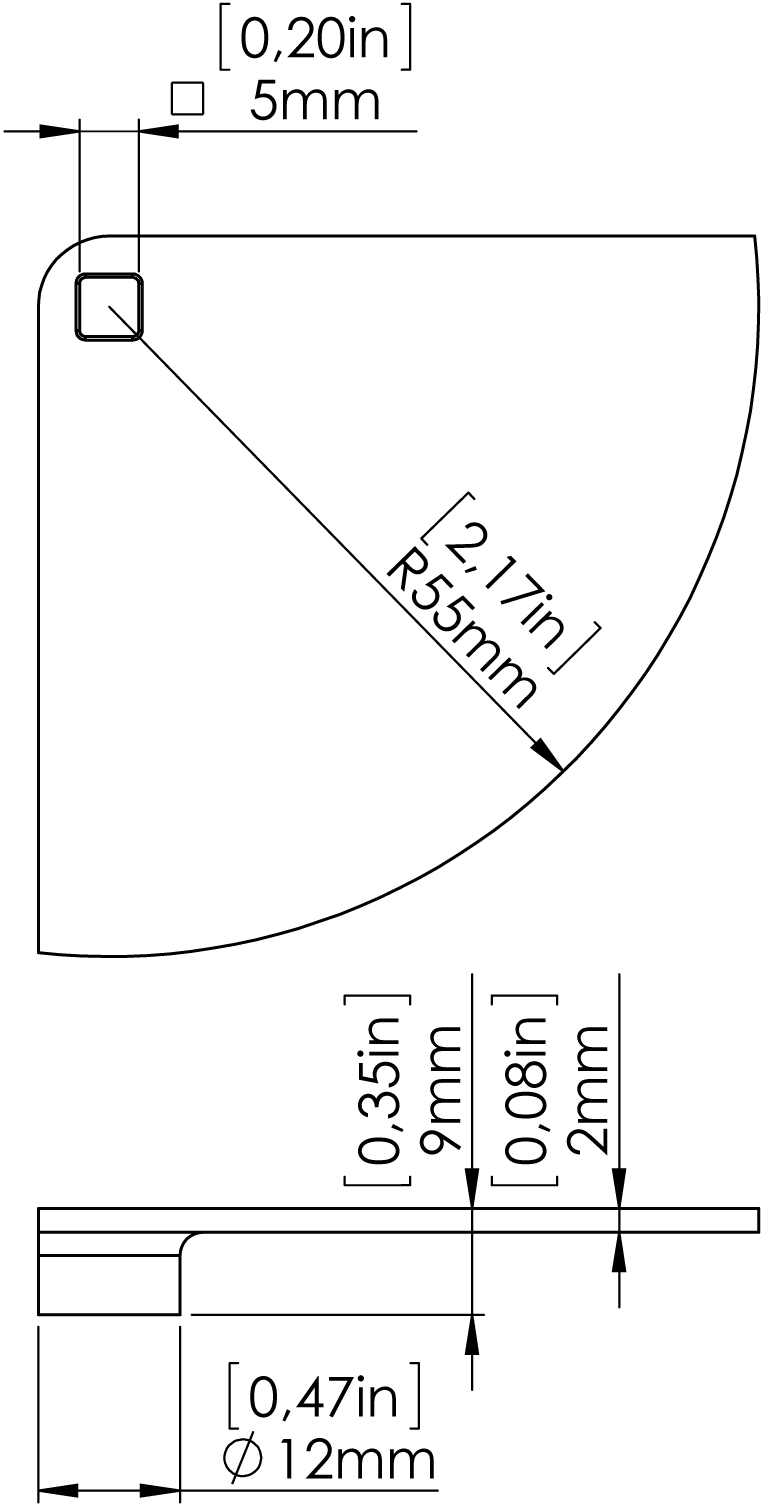

Aluminum universal lever blank quarter. For R-205 type Actuators, 5mm square.

PN-12054026 Download PDF
PN-12054045

PA-UL-101

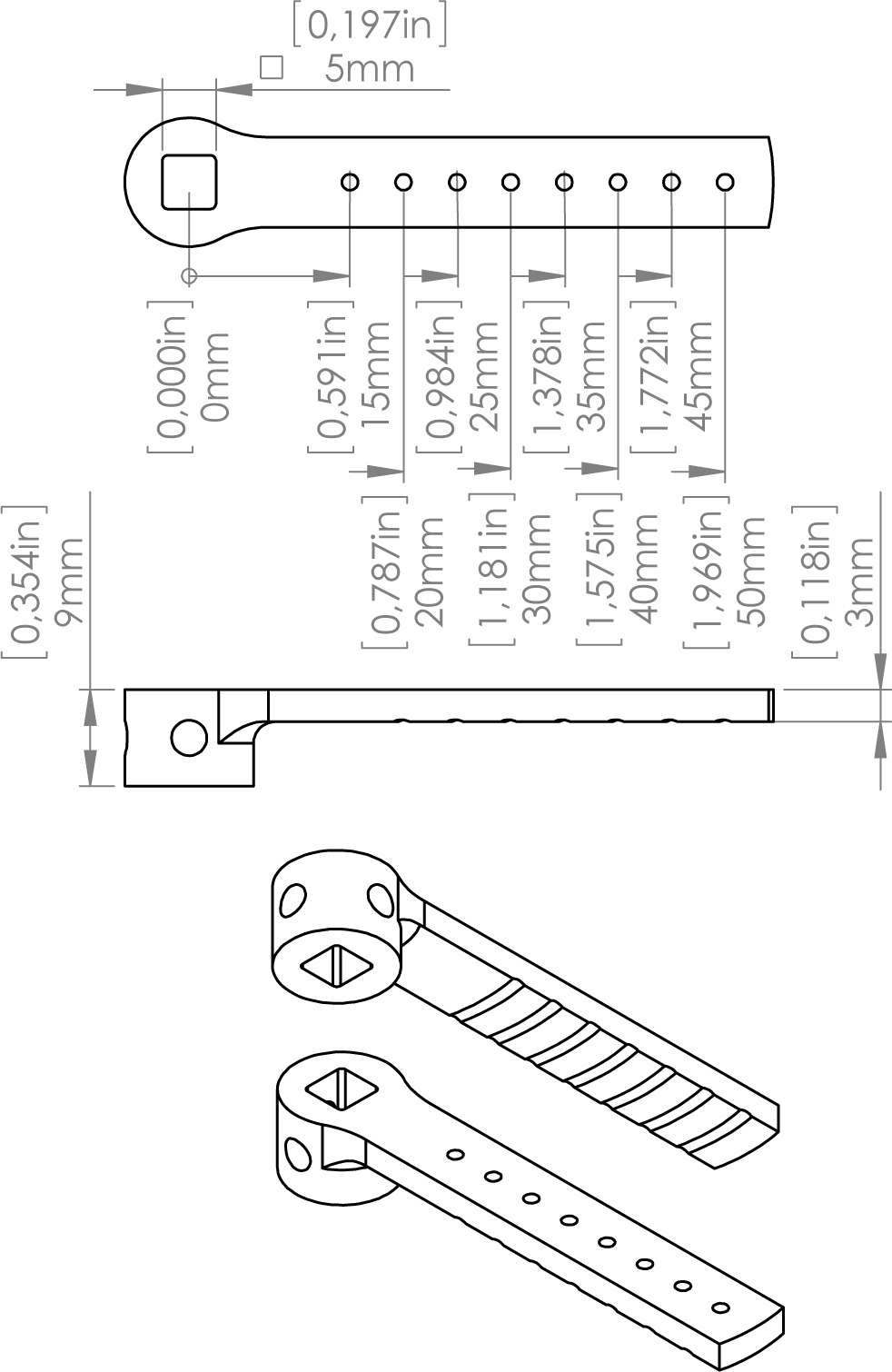

Aluminum universal lever with grooves to create holes or threads and to shorten. For R-205 type Actuators, 5mm square.

PN-12054045 Download PDF
PN-12508101

Extension cable for R-205, R-250, RR-260 Actuators, RA-OPV Clutches with Glenair 801 size 6-7 connector

1m cable with a mating Glenair Series 801 size 6-7 connector mounted and sealed on side 1 and an open end on side 2.

PN-12508101
PN-72509003

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, olive

Glenair 801-007-16NF6-7SA, Aluminum / Cadmium with Olive Drab Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-72509003
PN-74957001

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, black

Glenair 801-007-16ZNU6-7SA, Aluminum / Zinc-Nickel with Black Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-74957001
