PA-R-340-7 Industrial Actuators PA-R-340-7 Industrial Actuators

PA-R-340-7
Industrial Actuators

A well proven servo-actuator meeting the requirements for quick response speed at high torque rates. The 340-7 type-actuators are highly regarded for their performance in a wide range of applications.

Configuration and request     Start

Characteristics

Continuous torque 850 Ncm (1203,70 oz-in)
Max. torque > 1800 Ncm (> 2549,02 oz-in)
Operating voltage 12 or 24 V DC
No load speed 210 °/sec @12VDC
210 °/sec @24VDC
Weight 780 gr. (27,511 oz)
Travel angle ± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Board digital - programmable - with differential, analog sensor feedback
Signal A: PWM signal, TTL level (standard configuraton),
B: PWM signal, differential (RS485 transceiver) (optional),
C: RS485 Data protocol (optional),
N: CANopen CiA 402 (optional)
Motor BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 8 ball races or roller bearings with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation

Documents - Datasheets

Specifications Download PDF 179 KB
drawing_PA-R-340-7-C-XX-X-XXX-70, Actuators with PA-SC and DE9 connector Download PDF 180 KB
drawing_PA-R-340-7-C-XX-X-XXX-73, Actuators with PA-SC and Glenair 801 connector Download PDF 185 KB
drawing_PA-R-340-7-R-XX-X-XXX-70, Actuators with rigid output shaft and DE9 connector Download PDF 182 KB
drawing_PA-R-340-7-R-XX-X-XXX-73, Actuators with rigid output shaft and Glenair 801 connector Download PDF 185 KB
performance-graph_PA-R-340-7-X-24-X-XXX-7X Download PDF 114 KB

Accessories

PN-14850011

PA-Control 2

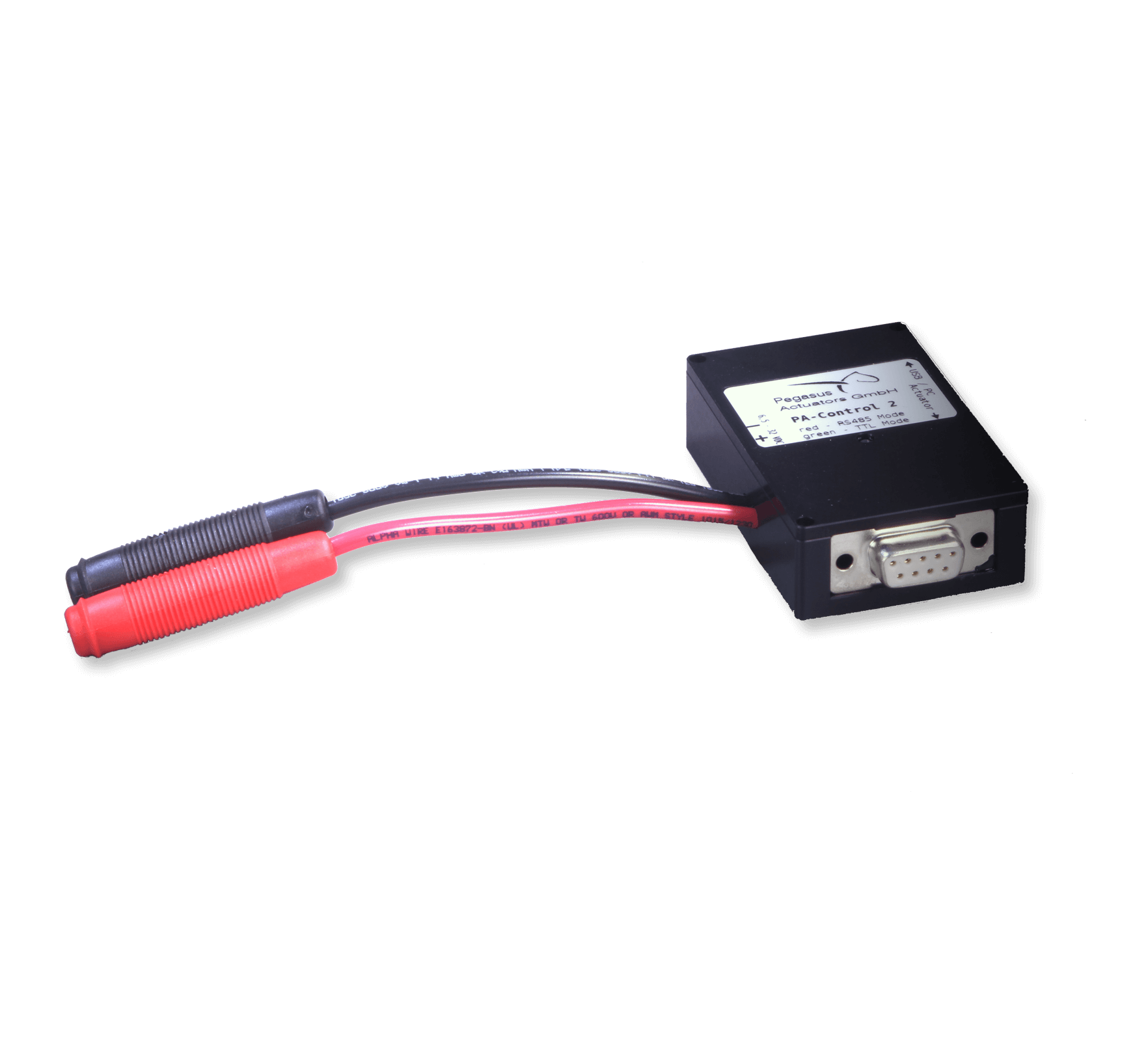

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info
PN-14850009

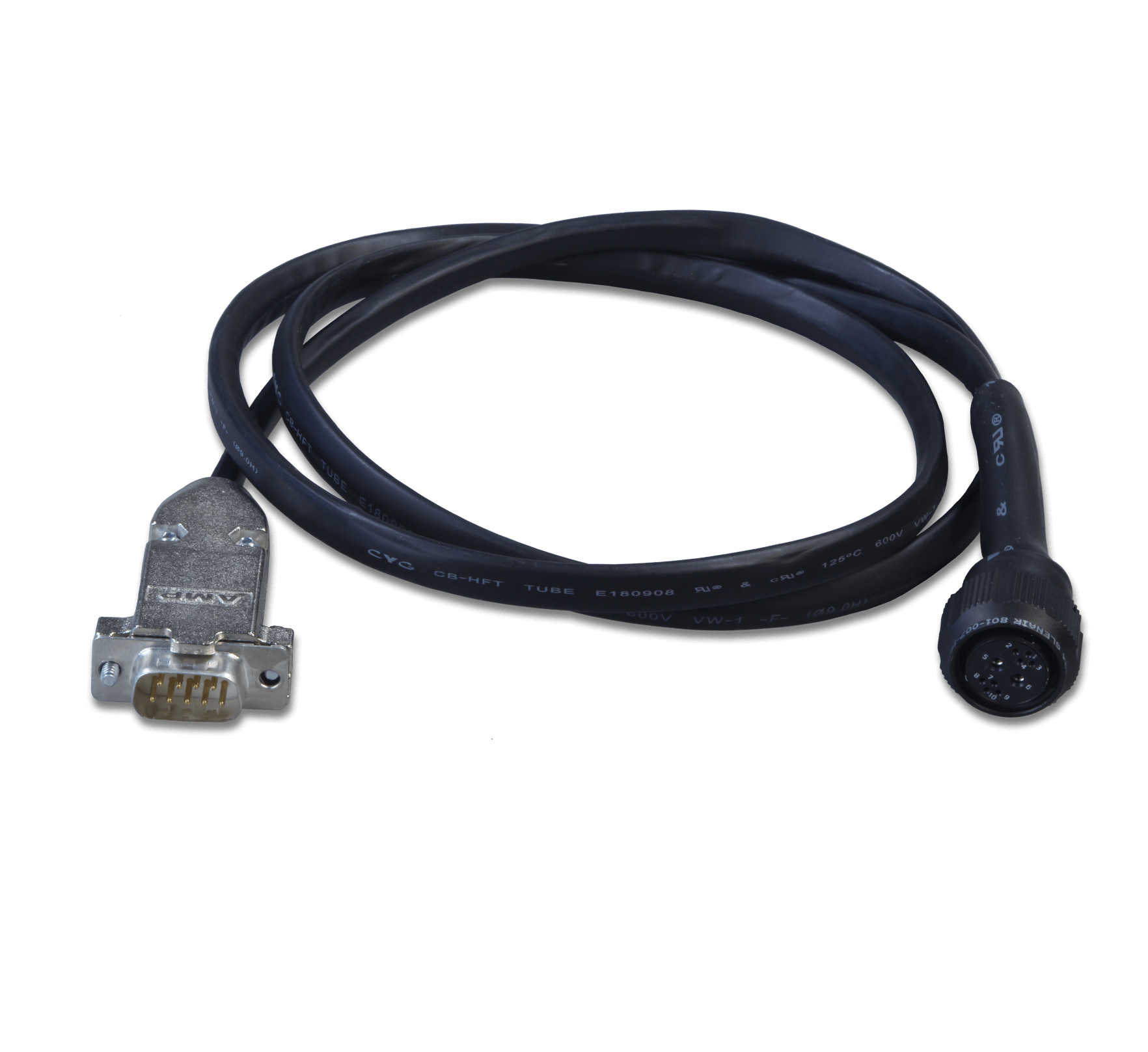

Programming cable for R-340, R-440 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-340 or R-440 type Actuator with Glenair Series 801 size 10-202 connector to the PA-Control 2.

PN-14850009
PN-13407051

PA-IF-340-7-01

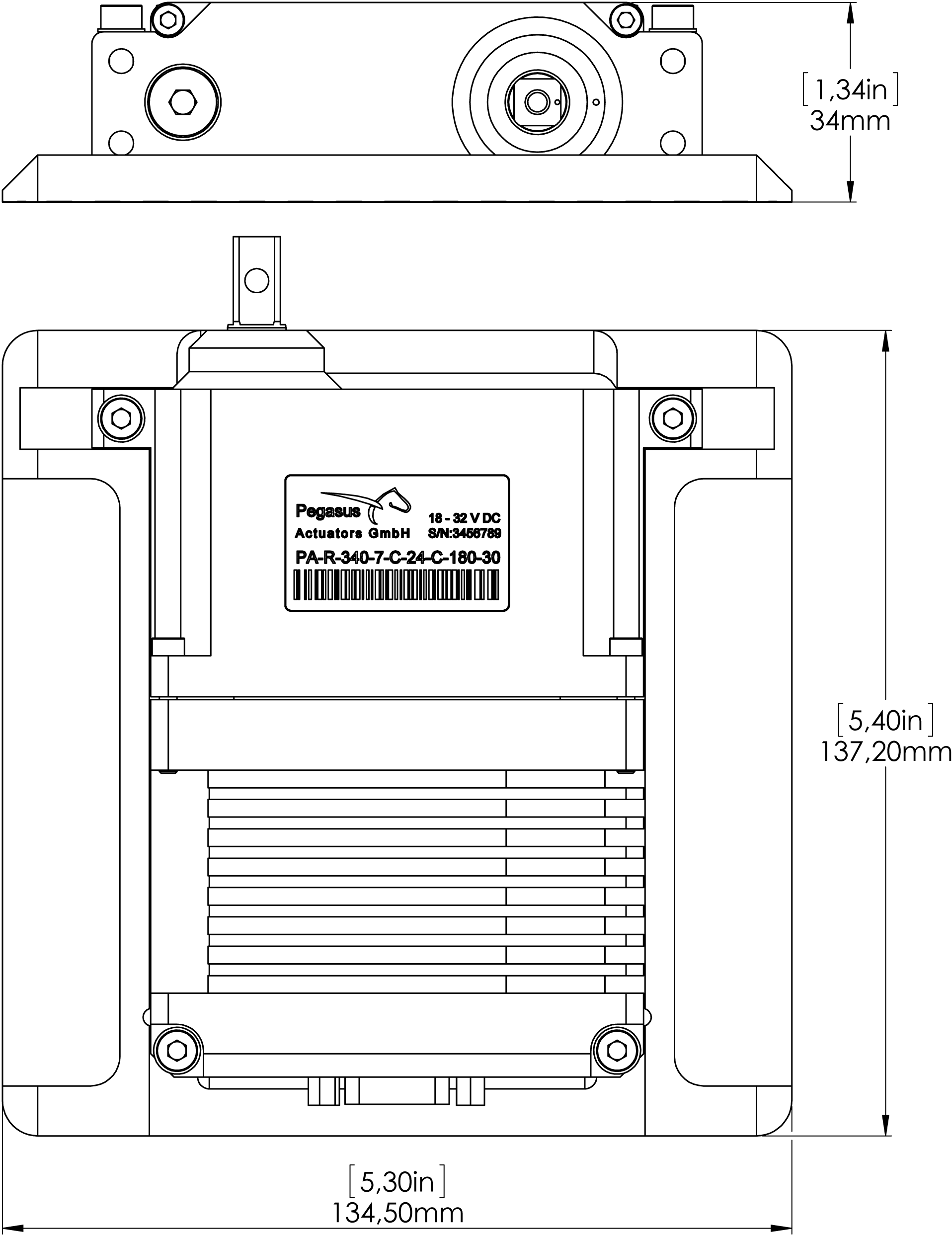

Installation frame for R-340-7 Actuators.

PN-13407051 Download PDF
PN-13407045

PA-UL-108

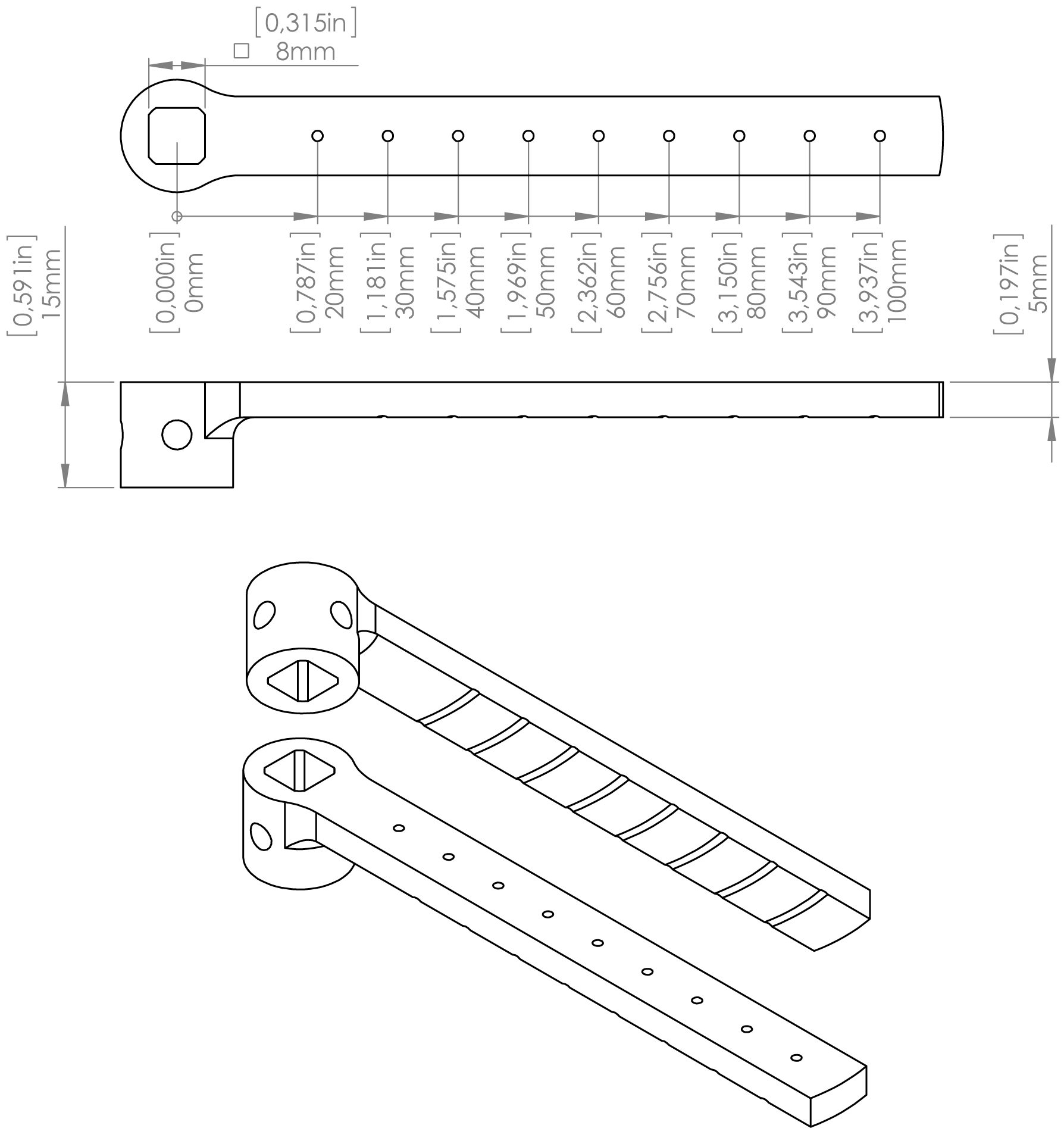

Aluminum universal lever with grooves to create holes or threads and to shorten it. For R-340 or RR-340 type Actuators, 8mm square.

PN-13407045 Download PDF
PN-13407421

PA-UL-008

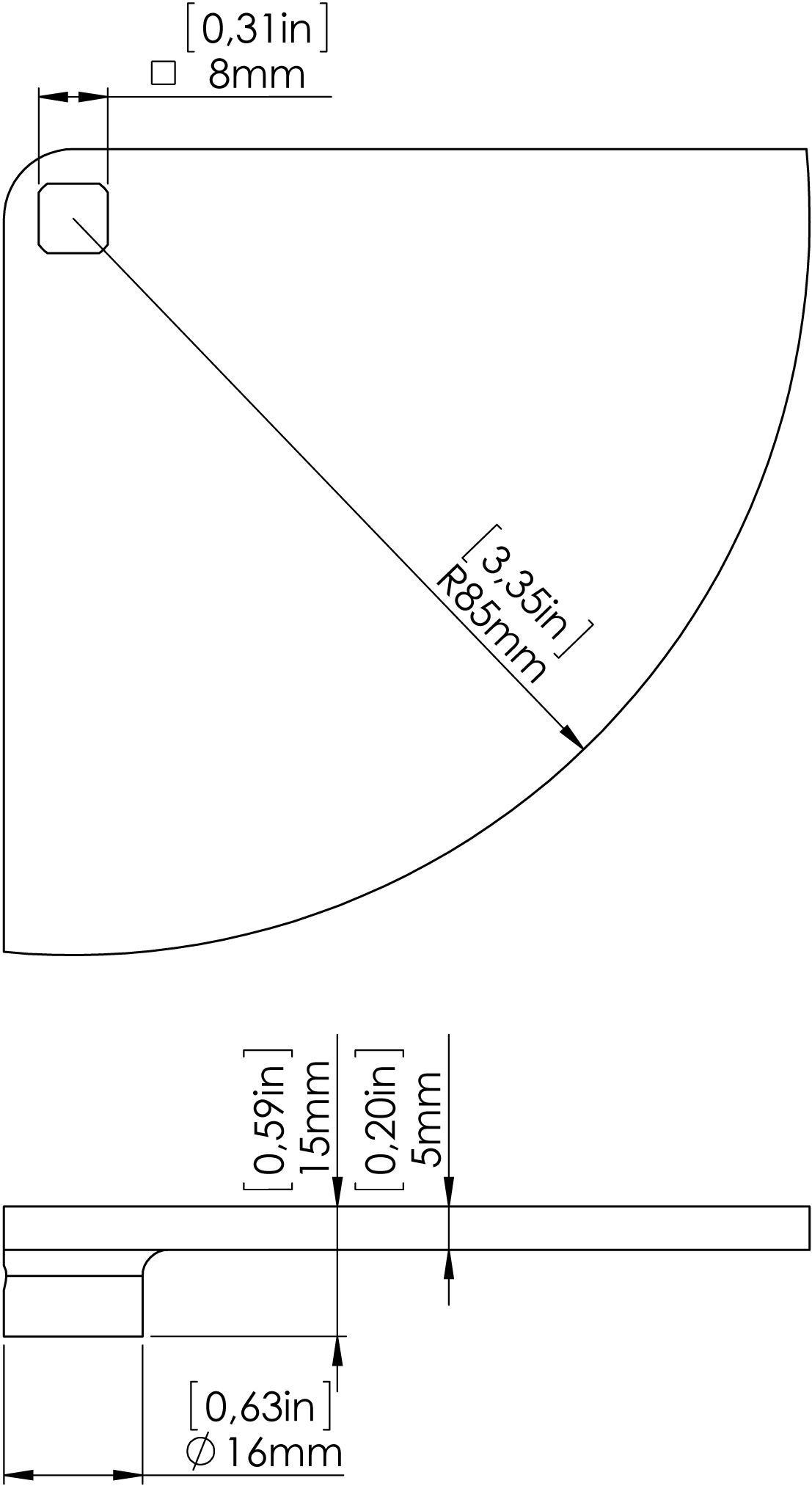

Aluminum universal lever blank quarter. For R-340 or RR-340 type Actuators, 8mm square.

PN-13407421 Download PDF
PN-13407101

Extension cable for R-340, R-440, RR-340, RR-720 Actuators with Glenair 801, 10-202 connector

1m cable with a mating Glenair Series 801 size 10-202 connector mounted and sealed on side 1 and an open end on side 2.

PN-13407101
PN-73407002

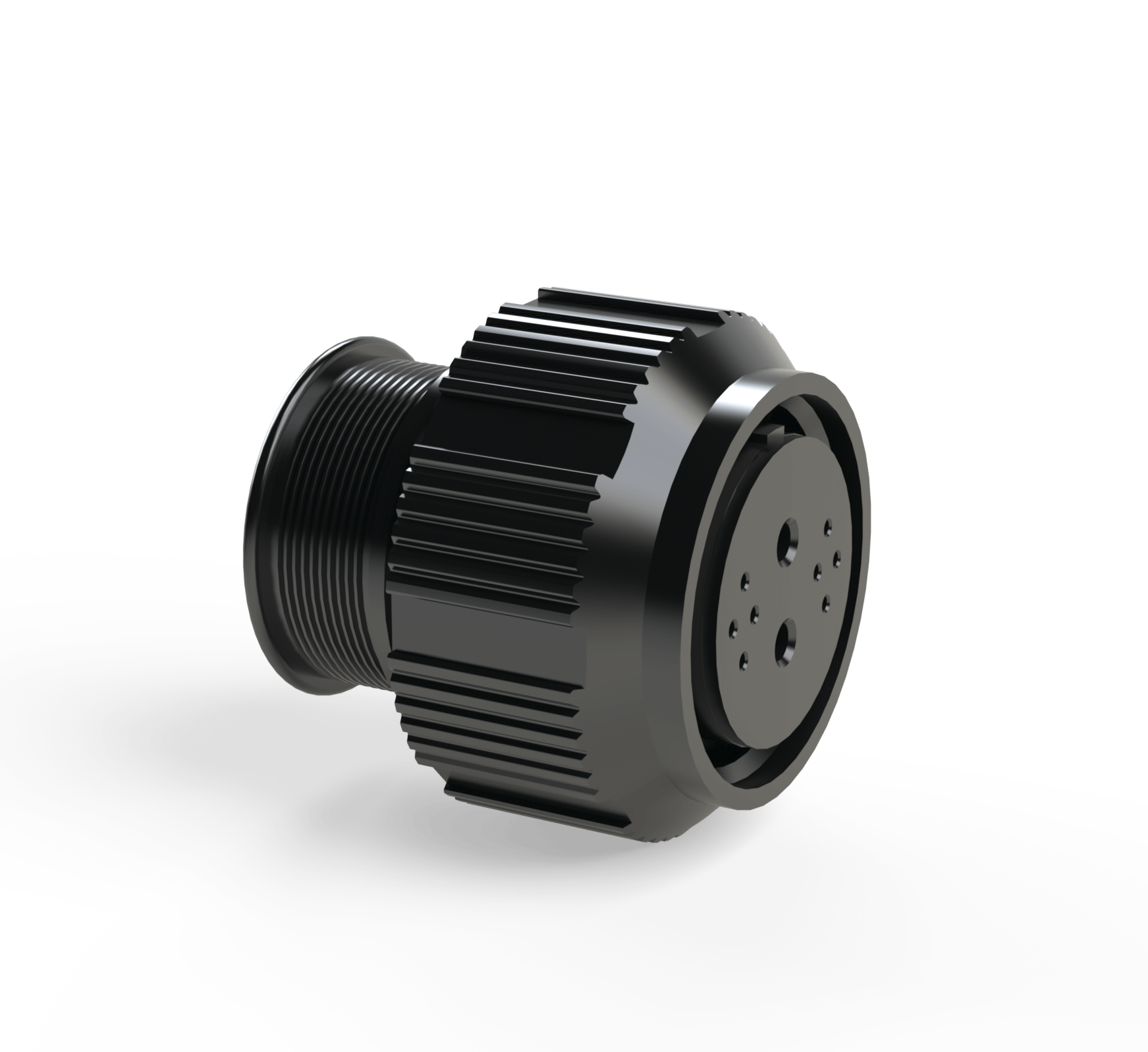

Mating Connector incl. Pins For Actuators with Glenair 801-size 10-202, black

Glenair 801-007-16ZNU10-202SA, Aluminum / Zinc-Nickel with Black Chromate, including 8x Glenair 809-002 (AWG22-28) and 2x 809-111 (AWG16-20) Socket Contacts.

PN-73407002
