With 35Nm maximum torque the PA-R-440-7 servo actuator is the Powerhouse of our product range. It features a very particular hardened steel gear train equipped with 8 ball and roller bearings. The gear train backlash has been minimized to 0,4° ! It comes with a brushless motor and a contact-less deflection angle sensor like the majority of its bros.

Characteristics

Continuous torque2000 Ncm (2832,24 oz-in)
Max. torque> 3500 Ncm (> 4956,42 oz-in)
Operating voltage24 V DC
No load speed 95 °/sec @24VDC
Weight1500 gr. (52,905 oz)
Travel angle± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Boarddigital - programmable - with differential, analog sensor feedback
SignalPWM signal, TTL level (standard configuraton)
PWM signal, differential (RS485 transceiver) (optional)
or RS485data protocol (optional)
MotorBLDC motor, Neodym magnet
Gear trainhardened steel, spur gear type, 10 roller bearings with PA-SC overload protection output shaft
Casealuminum, water- and dust protected (IP67), with solid fixation

Documents - Datasheets

Data Sheet Download PDF668 KB
Dimensions Download PDF664 KB
Performance Graph Download PDF333 KB
Specifications Download PDF357 KB

Accessories

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info

Programming cable for R-340, R-440 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-340 or R-440 type Actuator with Glenair Series 801 size 10-202 connector to the PA-Control 2.

PN-14850009

PA-IF-340-9-01

Installation frame for R-340-9 Actuators.

PN-13407052 Download PDF

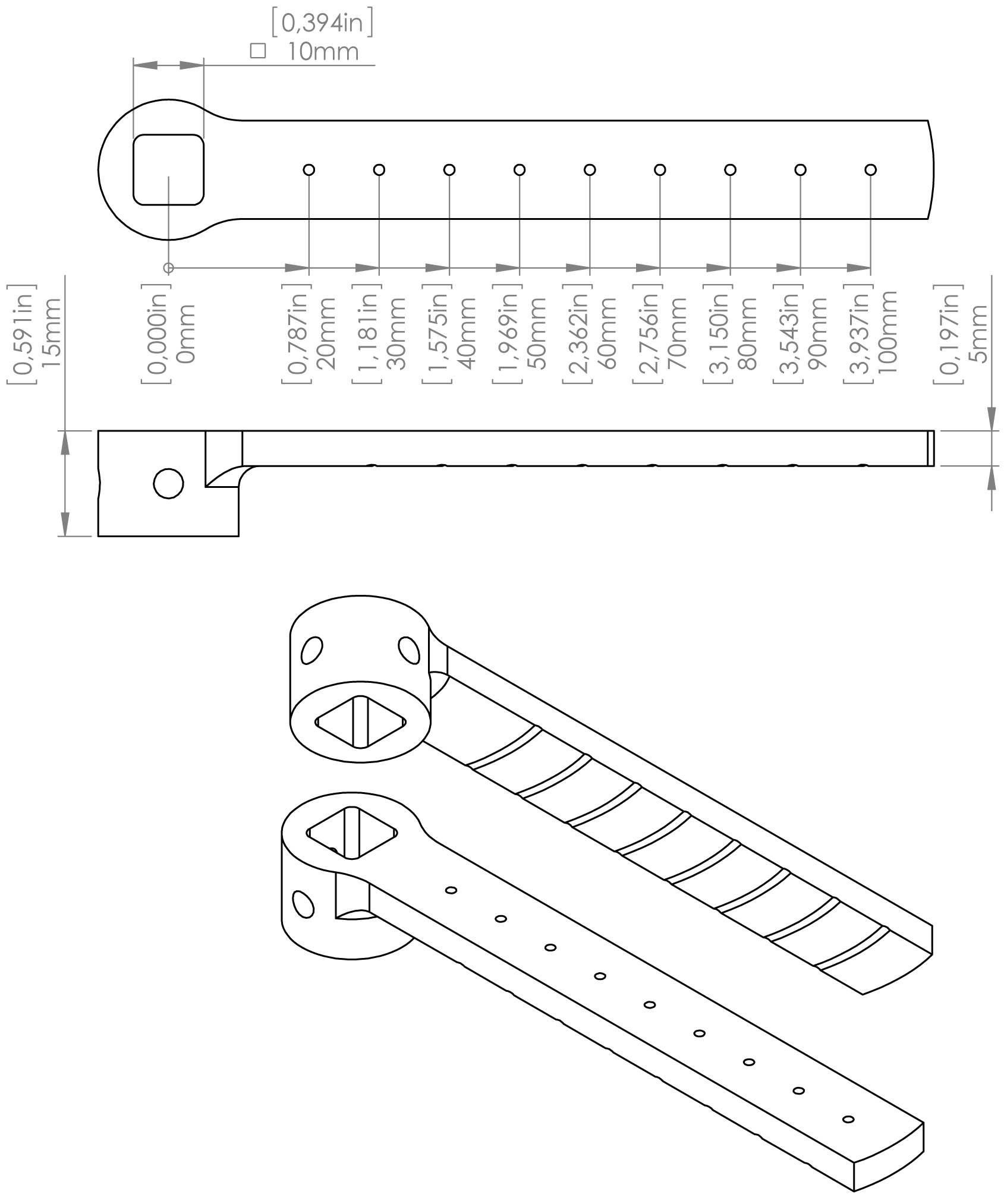

PA-UL-110

Steel universal lever with grooves to create holes or threads and to shorten it. For R-440 or RR-720 type Actuators, 10mm square.

PN-14407043 Download PDF

Extension cable for R-340, R-440, RR-340, RR-720 Actuators with Glenair 801, 10-202 connector

1m cable with a mating Glenair Series 801 size 10-202 connector mounted and sealed on side 1 and an open end on side 2.

PN-13407101

Mating Connector incl. Pins For Actuators with Glenair 801-size 10-202, black

Glenair 801-007-16ZNU10-202SA, Aluminum / Zinc-Nickel with Black Chromate, including 8x Glenair 809-002 (AWG22-28) and 2x 809-111 (AWG16-20) Socket Contacts.

PN-73407002
