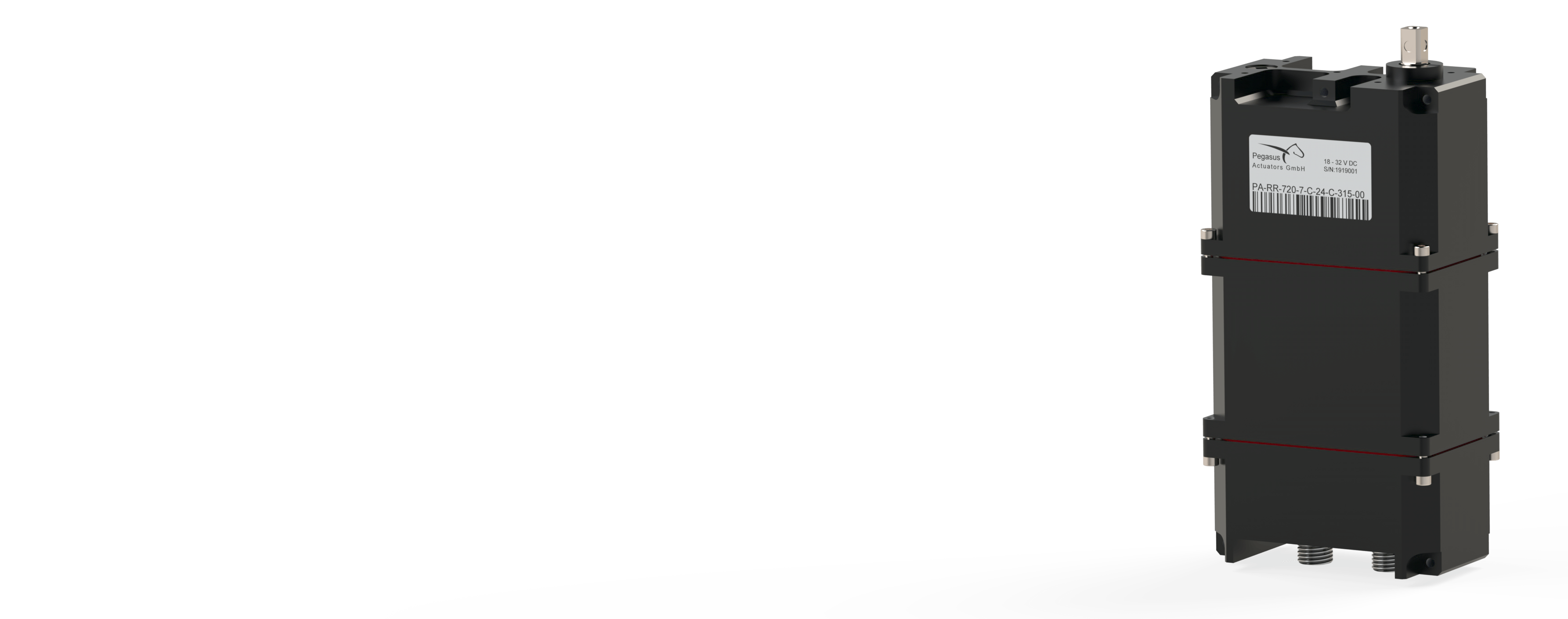

The PA-RR-720-7 type servo-actuator with 35Nm maximum torque is the powerhouse of our redundant actuator product range.

Pegasus redundant servo actuators are stand-alone solution. All redundancy related process decisions are performed internally by the actuator. The advantage: No additional engineering for modified autopilot systems, no redundancy related decisions to be proceeded by the autopilot, the only necessary requirement is that we need two identical channels for each redundant servo actuator. In case of a component failure a specific warning signal will be reported to the autopilot. Our redundant actuators will perform their full torque, rotational speed, and bandwidth – even after a single point failure incidence.

Characteristics

Continuous torque 2000 Ncm (2832,24 oz-in)
Max. torque > 3500 Ncm (> 4956,42 oz-in)
Operating voltage 24 V DC
No load speed 90 °/sec @24VDC
Weight 2300 gr. (81,121 oz)
Travel angle 315° (PA-ME³ / redundant contactless angle sensor)
PC-Board dual servo controller - with digital position feedback
Signal Redundant RS485 data protocol
Motor dual BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 10 roller bearings with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid fixation

Documents - Datasheets

general information for Redundant Actuators Download PDF 108 KB
drawing_PA-RR-720-7-C-24-C-315-00 Download PDF 186 KB
Datasheet Download PDF 330 KB

Accessories

PA-Control 3

PA-Control 3 programming tool to parameterize your redundant Pegasus Actuator.

PN-14950001 More Info

Programming cable for RR-340, RR-720 Actuators

Programming / Adapter Cable to connect an RR-340 or RR-720 type Actuator to the PA-Control 3.

PN-14950006

PA-UL-110

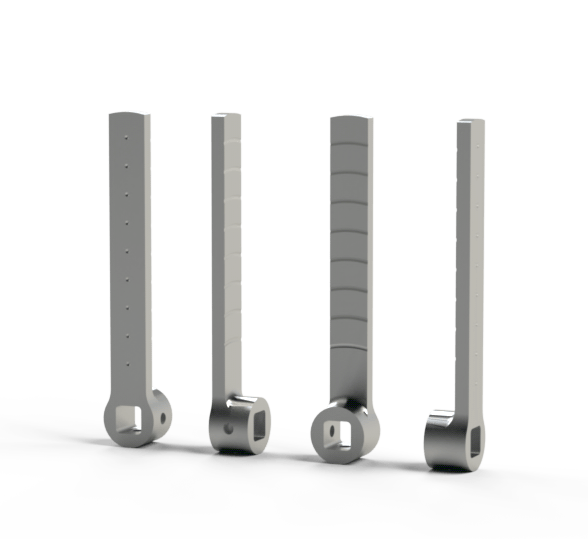

Steel universal lever with grooves to create holes or threads and to shorten it. For R-440 or RR-720 type Actuators, 10mm square.

PN-14407043 Download PDF

Extension cable for R-340, R-440, RR-340, RR-720 Actuators with Glenair 801, 10-202 connector

1m cable with a mating Glenair Series 801 size 10-202 connector mounted and sealed on side 1 and an open end on side 2.

PN-13407101

Mating Connector incl. Pins For Actuators with Glenair 801-size 10-202, black

Glenair 801-007-16ZNU10-202SA, Aluminum / Zinc-Nickel with Black Chromate, including 8x Glenair 809-002 (AWG22-28) and 2x 809-111 (AWG16-20) Socket Contacts.

PN-73407002
