There is a wide range of industrial actuator products and redundant servo actuators for uav's "unmanned air vehicle" / rpv's "remotely piloted vehicle" available, please make your choice.

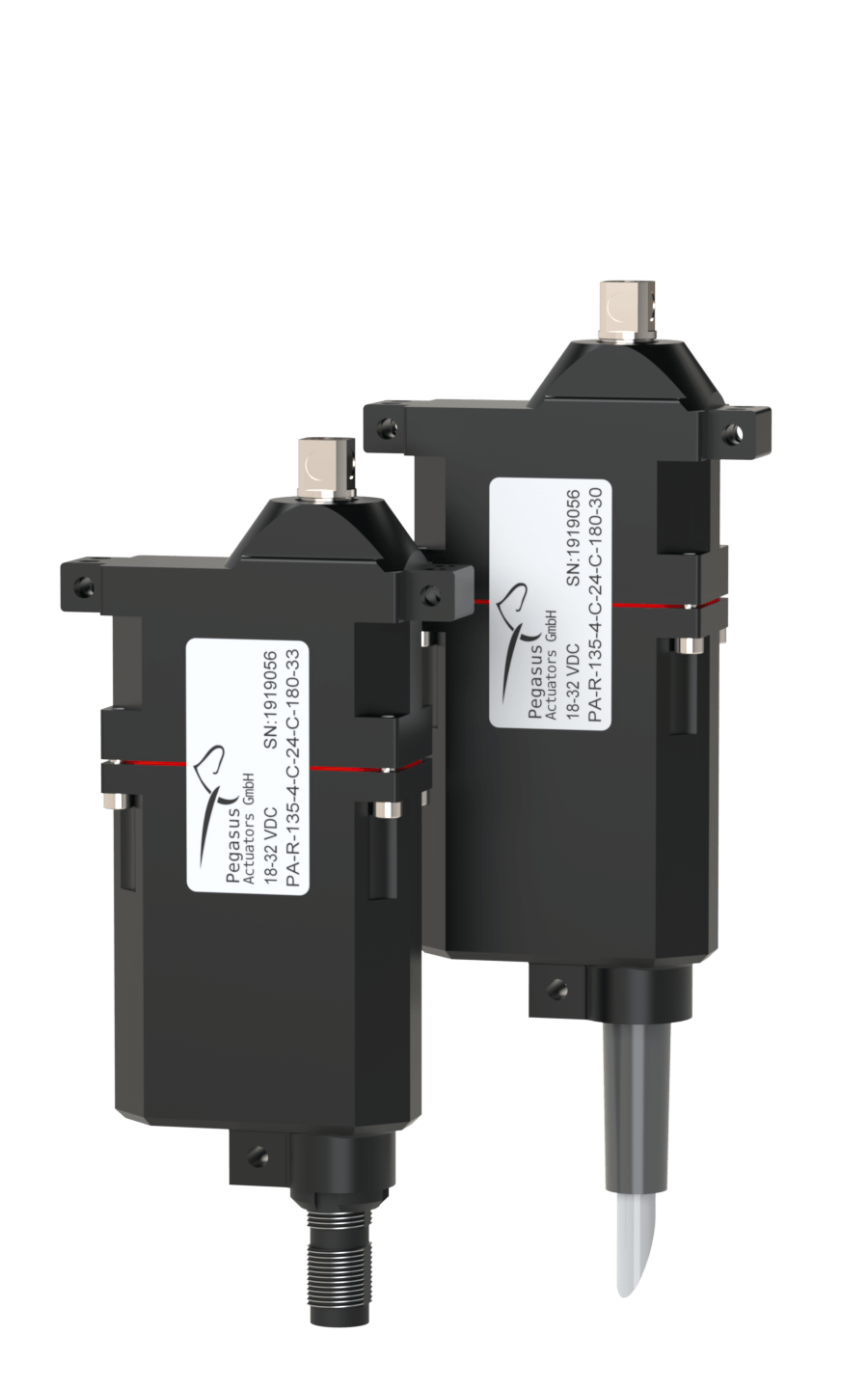

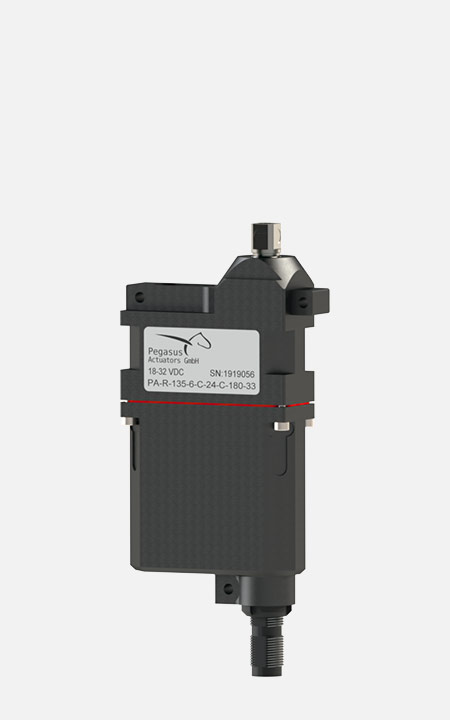

PEGASUS industrial servo actuators are electromechanical drive units of extraordinary power density, precision and reliability.
They consist of a rugged water and dust protected aluminum case. This case comprises a robust steel reduction gear-train, a BLDC or DC motor, and a micro controller managed pc-board.
A precision sensor coupled to the output shaft closes the contol loop. PEGASUS servo actuators can either be operated by PWM signal with TTL level, differential PWM signal (RS485 transceiver) or RS485 data protocol.
Following our customers requirements meanwhile all Pegasus servo actuators are equipped with our state-of-the-art „PA-ME“ contactless-angle-sensor and come with a standard deflection angle of ±90° (enlarged travel angles on special request).
Another valuable option is our integrated „PA-SC“ gear-train protection system to safeguard the actuator gear-trains against destructive shock loads without compromising the actuators resolution and torque output in any respect. All Pegasus servo-actuators come with identically aligned output shafts.
Our actuators are specified for an operating voltage of 6 - 32 Volt. Alternative voltages on request.

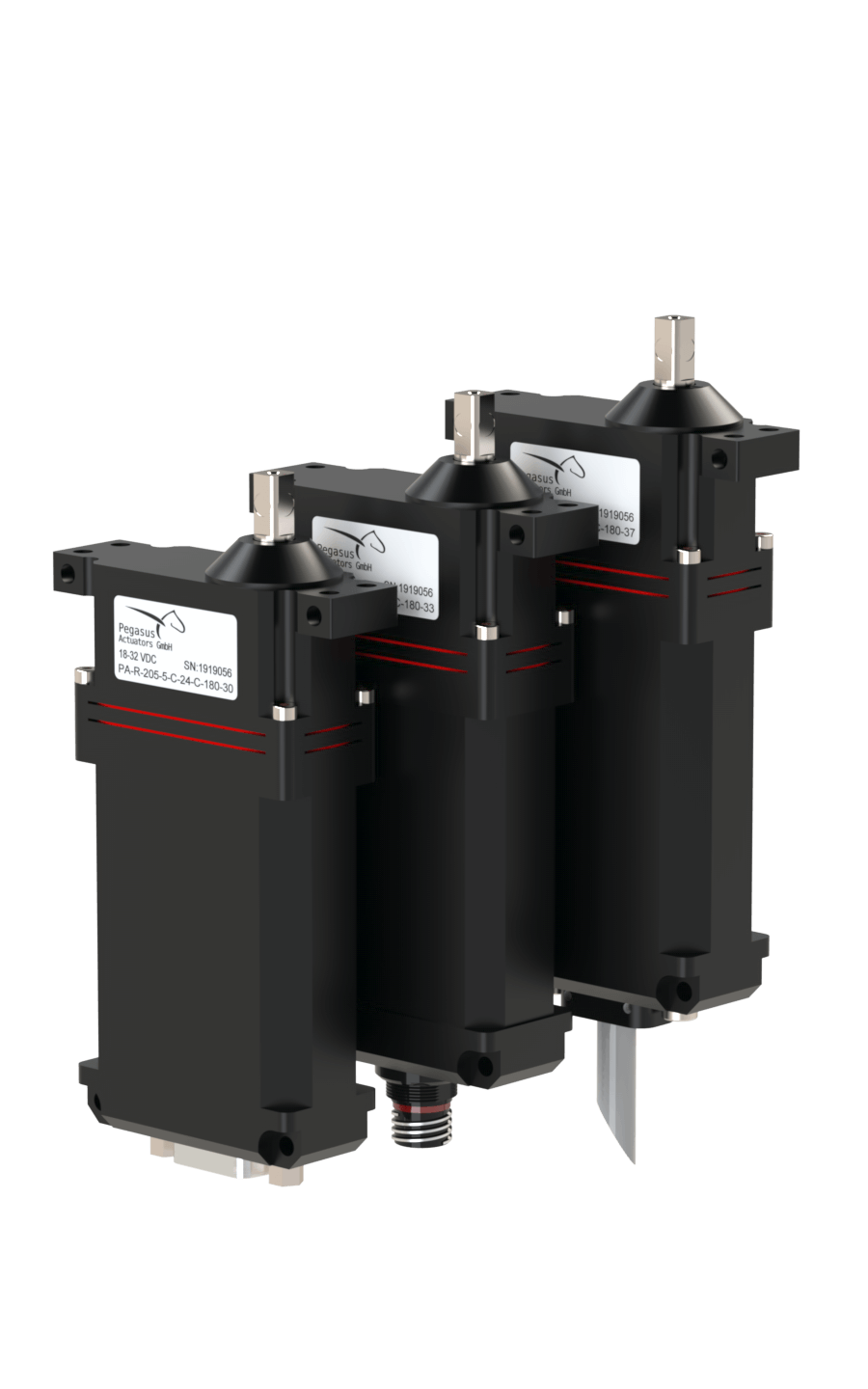

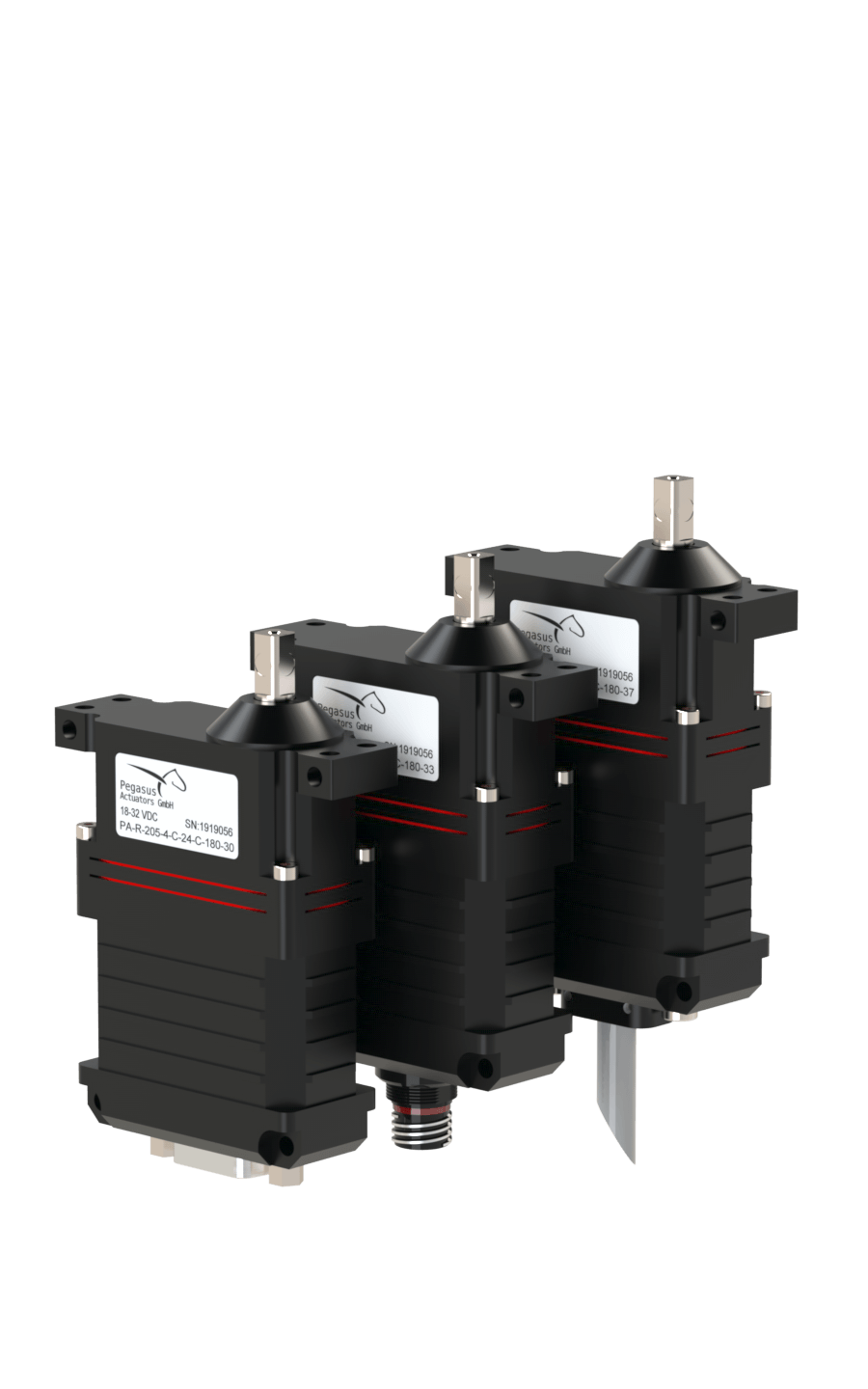

The PEGASUS PA-R-205-4 comes in a comparatively small package but is suitable for all types of industrial and remote-controlled applications that require exceptional reliability and service lifetime.
Characteristics:
Continuous torque | 80 Ncm |
Max. torque | 200 Ncm |
Operating voltage | 6, 12 or 24 V DC |
No load speed |
255 °/sec @12VDC 245 °/sec @24VDC |

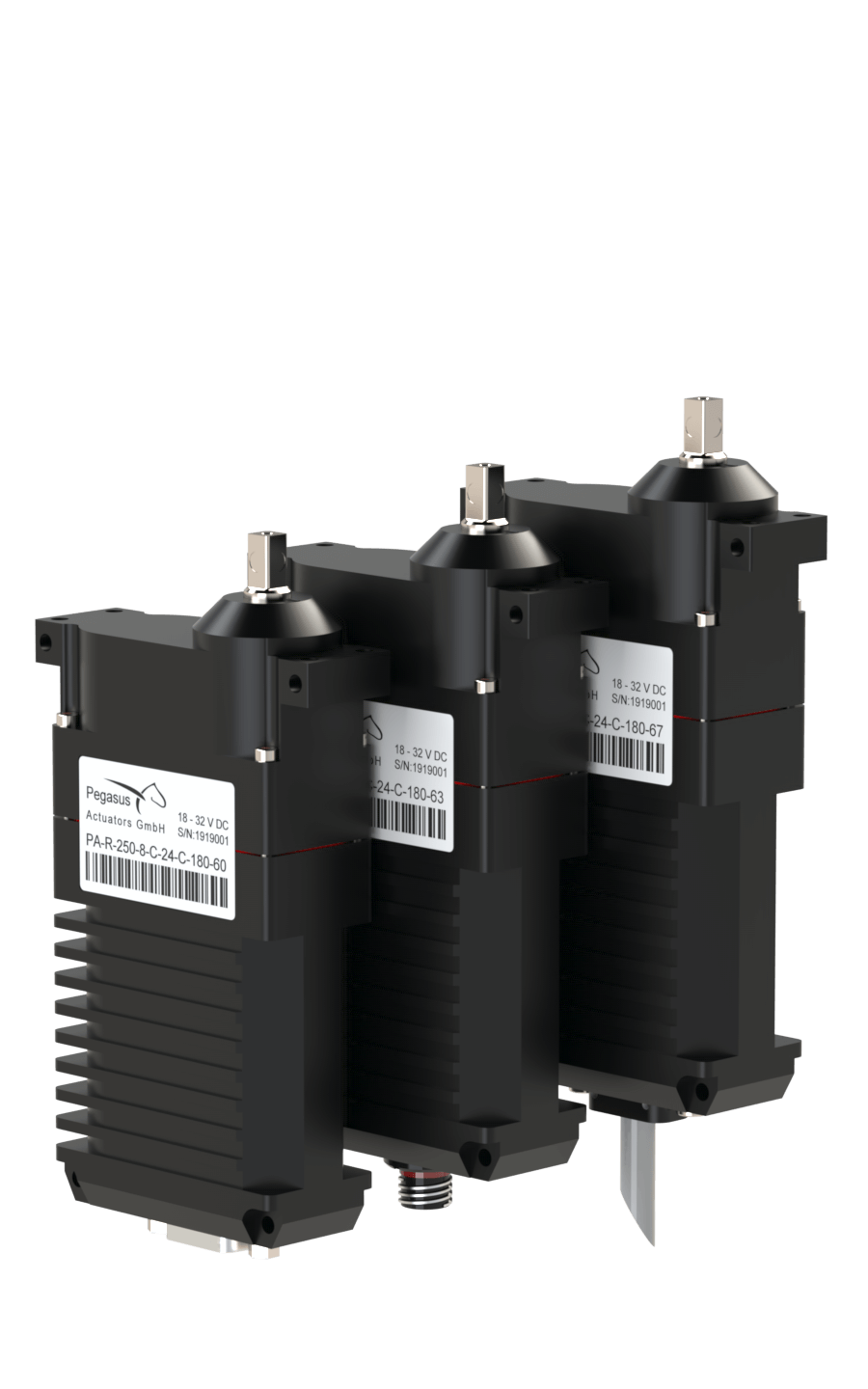

The PEGASUS PA-R-250-8 is the right servo-actuator for applications with high requirements in terms of powerful torque, high speeds, and precise positioning. With its BL-DC-technology (brushless DC motor) and PA-ME contact-less position sensor it combines extraordinary reliability and precision.
Characteristics:
Continuous torque | 300 Ncm |
Max. torque | 500 Ncm |
Operating voltage | 12 or 24 V DC |
No load speed |
195 °/sec @12VDC 210 °/sec @24VDC |

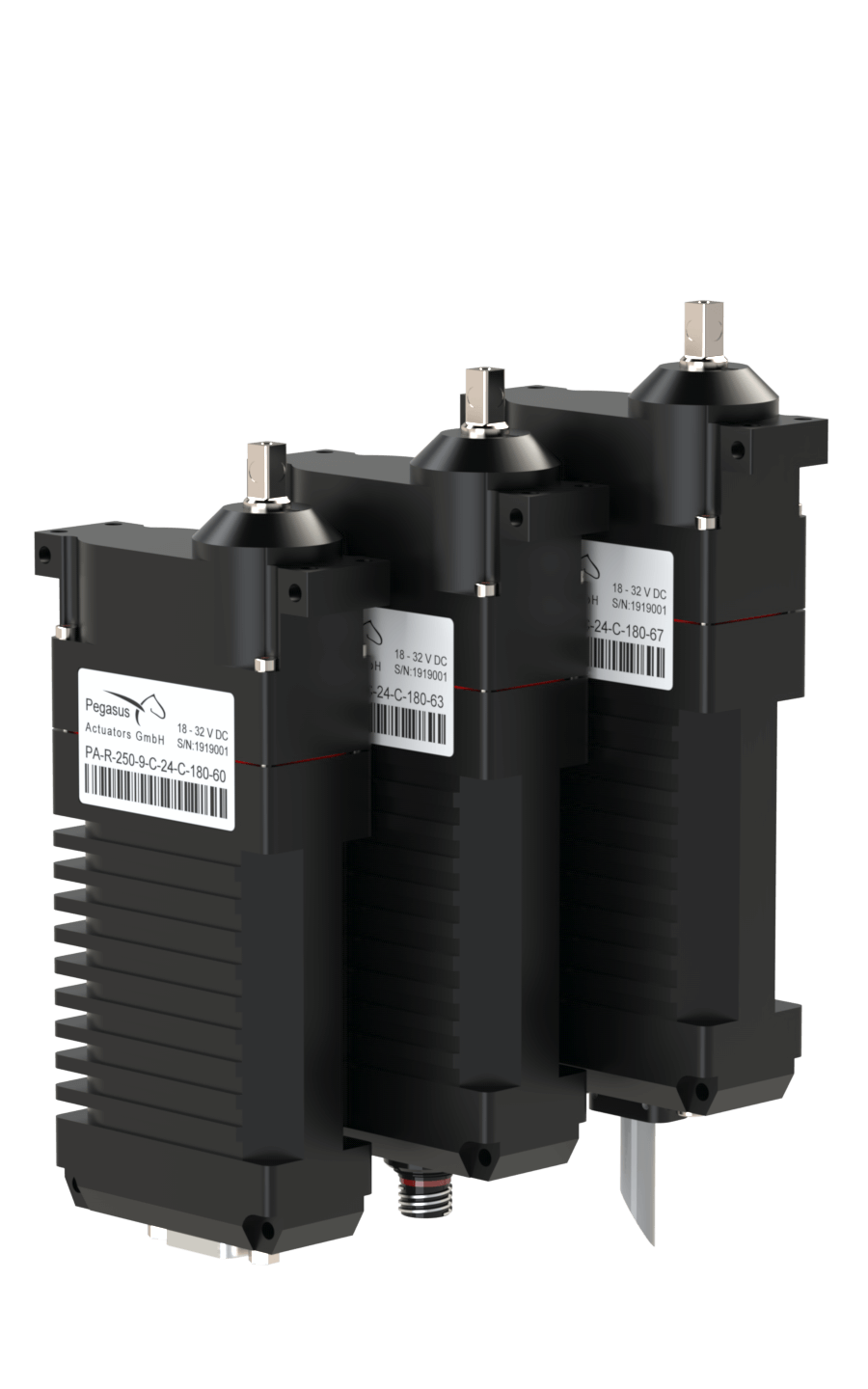

One of our industrial customers asked for a high output version of our proven PA-R-250-8 actuator. We implemented a high-output-brushless DC motor and adjusted the gear-train as well as the servo case design. The result was the PA-R-250-9 actuator. Its power-to-weight ratio is second to none.
Characteristics:
Continuous torque | 400 Ncm |
Max. torque | 700 Ncm |
Operating voltage | 24 V DC |
No load speed |
185 °/sec @24VDC |
A well proven servo-actuator meeting the requirements for quick response speed at high torque rates. The 340-7 type-actuators are highly regarded for their performance in a wide range of applications.
Characteristics:
Continuous torque | 850 Ncm |
Max. torque | 1800 Ncm |
Operating voltage | 12 or 24 V DC |
No load speed |
210 °/sec @12VDC 210 °/sec @24VDC |
With 35Nm maximum torque the PA-R-440-7 servo-actuator is the powerhouse of our product range. It features a very particular hardened steel gear train equipped with 10 ball and roller bearings. The gear train backlash has been minimized to 0,4°! It features a brushless motor and a contact-less deflection angle sensor.
Characteristics:
Continuous torque | 2000 Ncm |
Max. torque | 3500 Ncm |
Operating voltage | 24 V DC |
No load speed |
90 °/sec @24VDC |
For controlling unmanned systems, quality RC hobby servos and high grade multipurpose industrial actuators have become firmly established within the unmanned systems community. Although a lot of effort has been invested to improve the reliability of such servos, there is still one main drawback: Any kind of component failure can result in a total loss of the system. Particularly in unmanned helicopter applications, there is little chance to support system reliability by adding more actuators to operate the main rotor swash plate or the tail rotor sufficiently in case of an actuator failure.

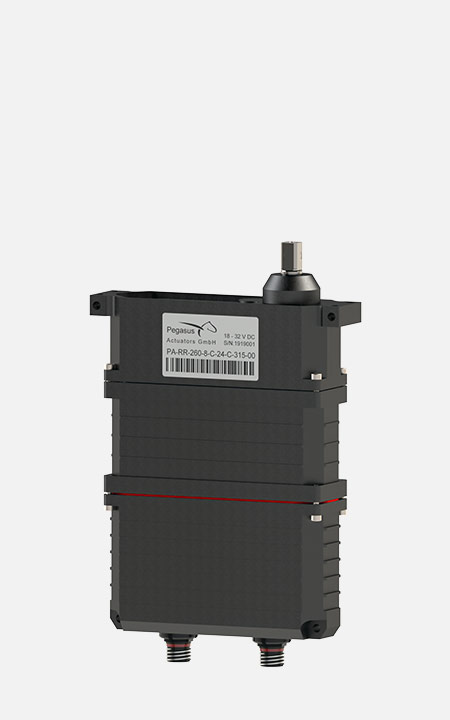

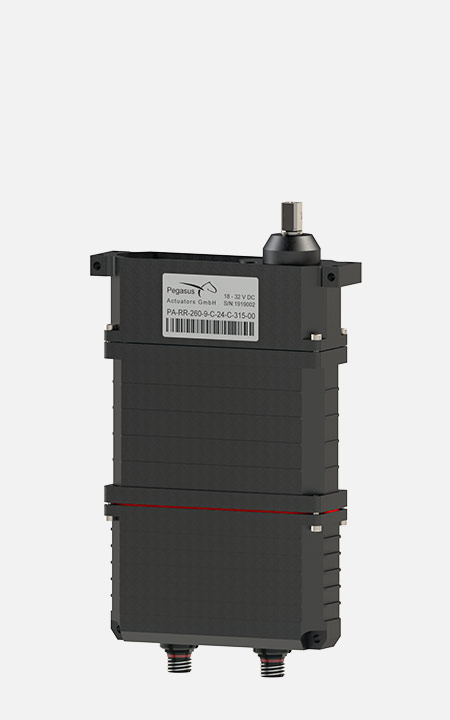

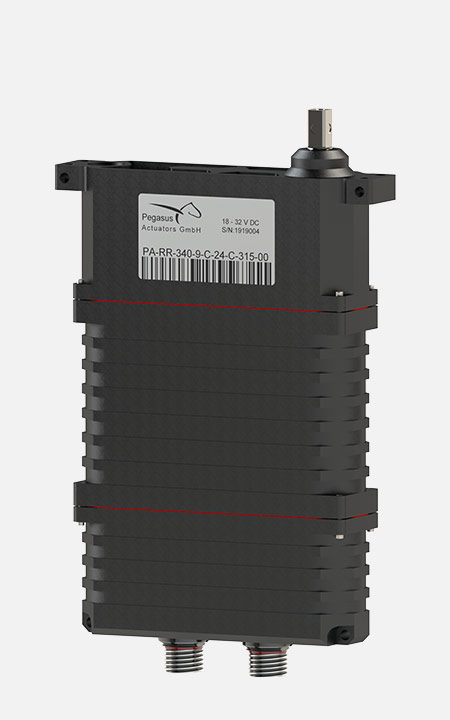

To overcome these disadvantages we, at Pegasus Actuators GmbH, have developed the world’s first small electro-mechanic redundant servo actuator enhancing servo-actuator reliability to an unparalleled level. The new product features two BLDC motors, a triple redundant PA-ME³ contact-less sensor unit, multiple redundant digital servo controller boards, multiple redundant master controller boards and a redundant servo signal and power supply. Therefore our redundant actuators even tolerate failures like a defective power – or signal cable. In difference to our industrial grade actuators our redundant actuators feature a unique single point failure tolerant system architecture. The Pegasus redundant servo actuator is a Stand-Alone solution, meaning that all redundancy related process cycles are performed internally by the actuator. The advantage: No additional engineering for modified A.P systems, no redundancy related decisions to be proceeded by the A.P. system, only necessary requirement is that we need two identical channels for each redundant servo actuator. In case of a component failure a specific warning signal will be reported . Our redundant actuators will perform their full torque, rotational speed and bandwidth – even after a single point failure incidence. For more detailed info please ask for related documentation.
Typical Applications:

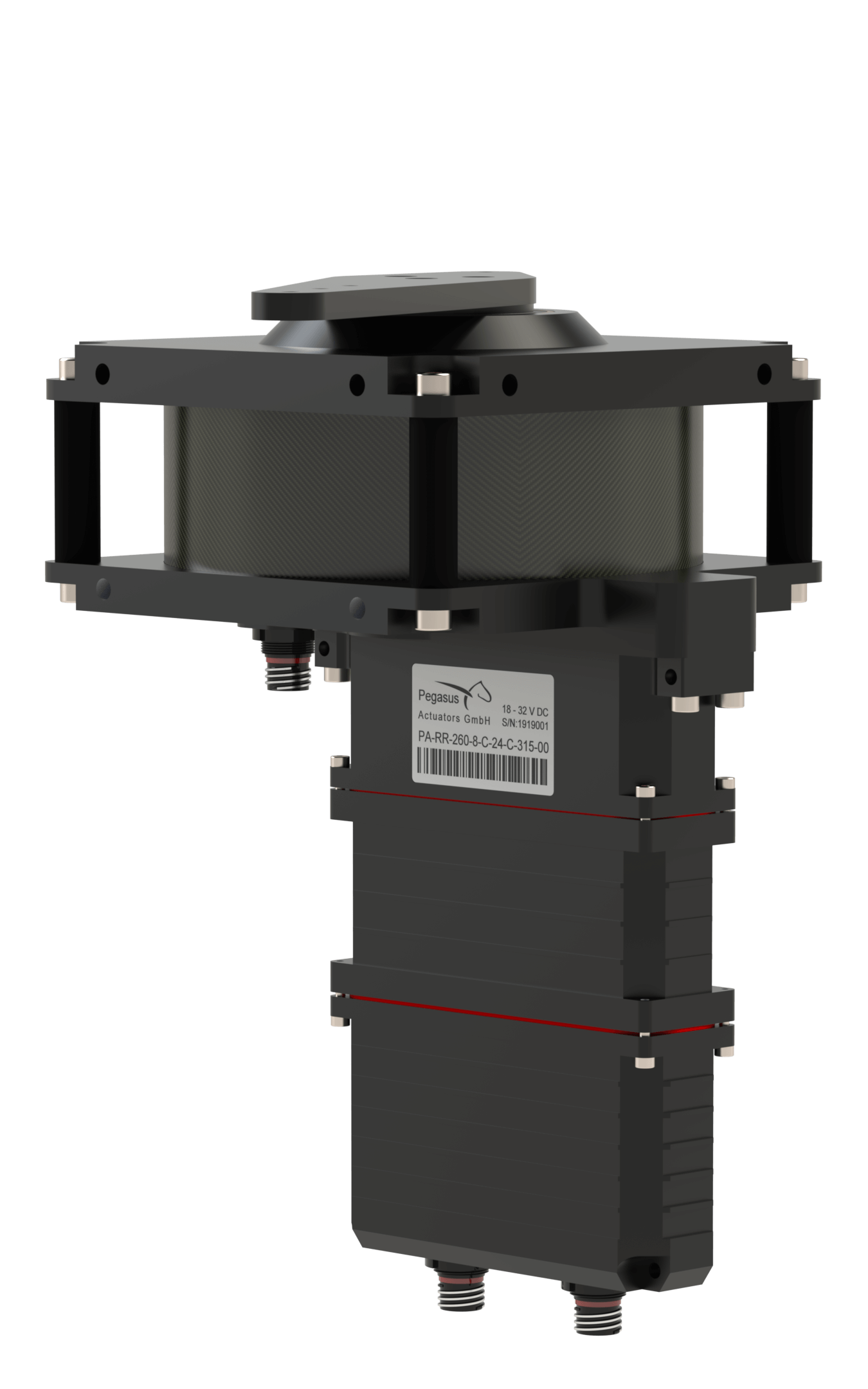

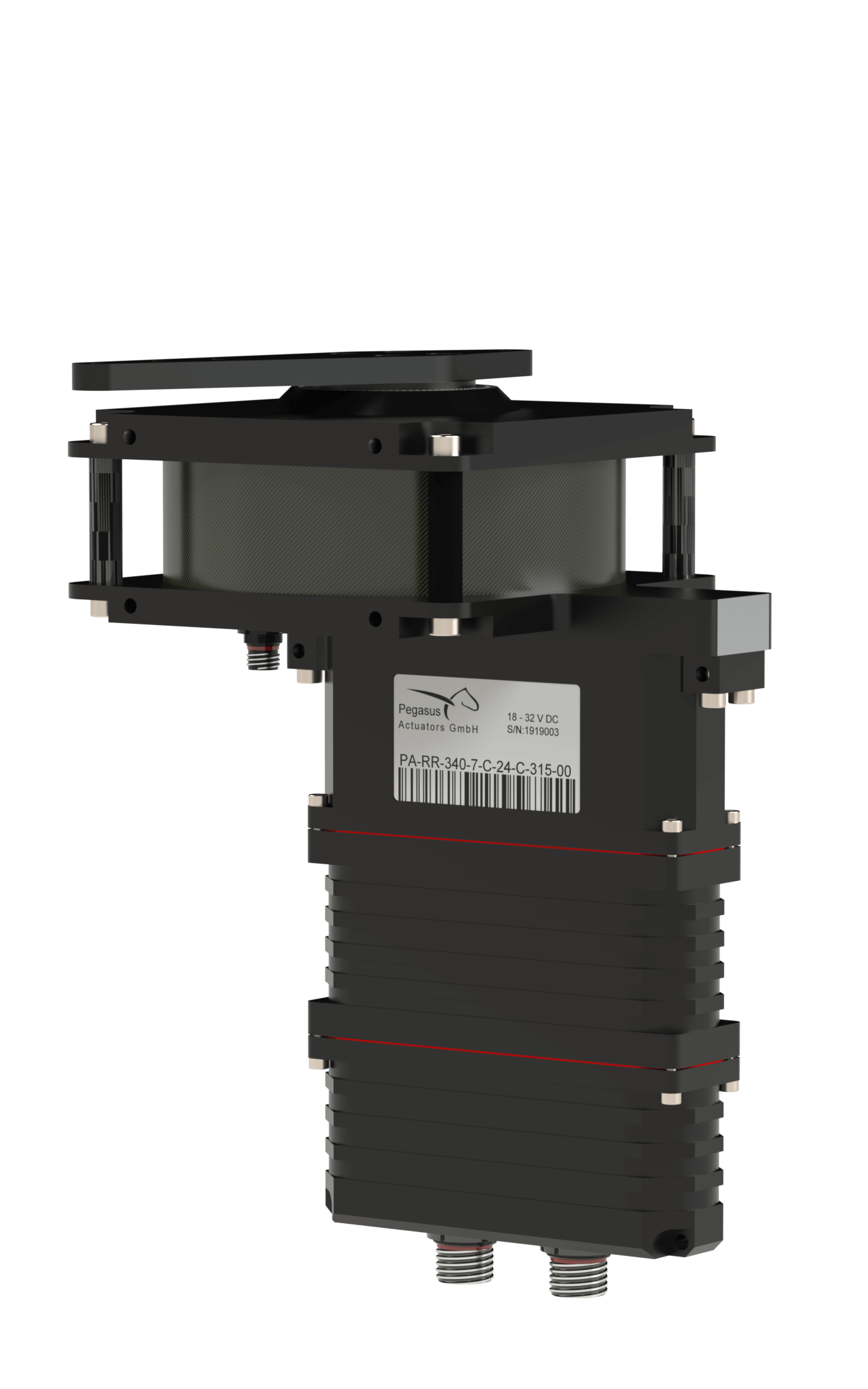

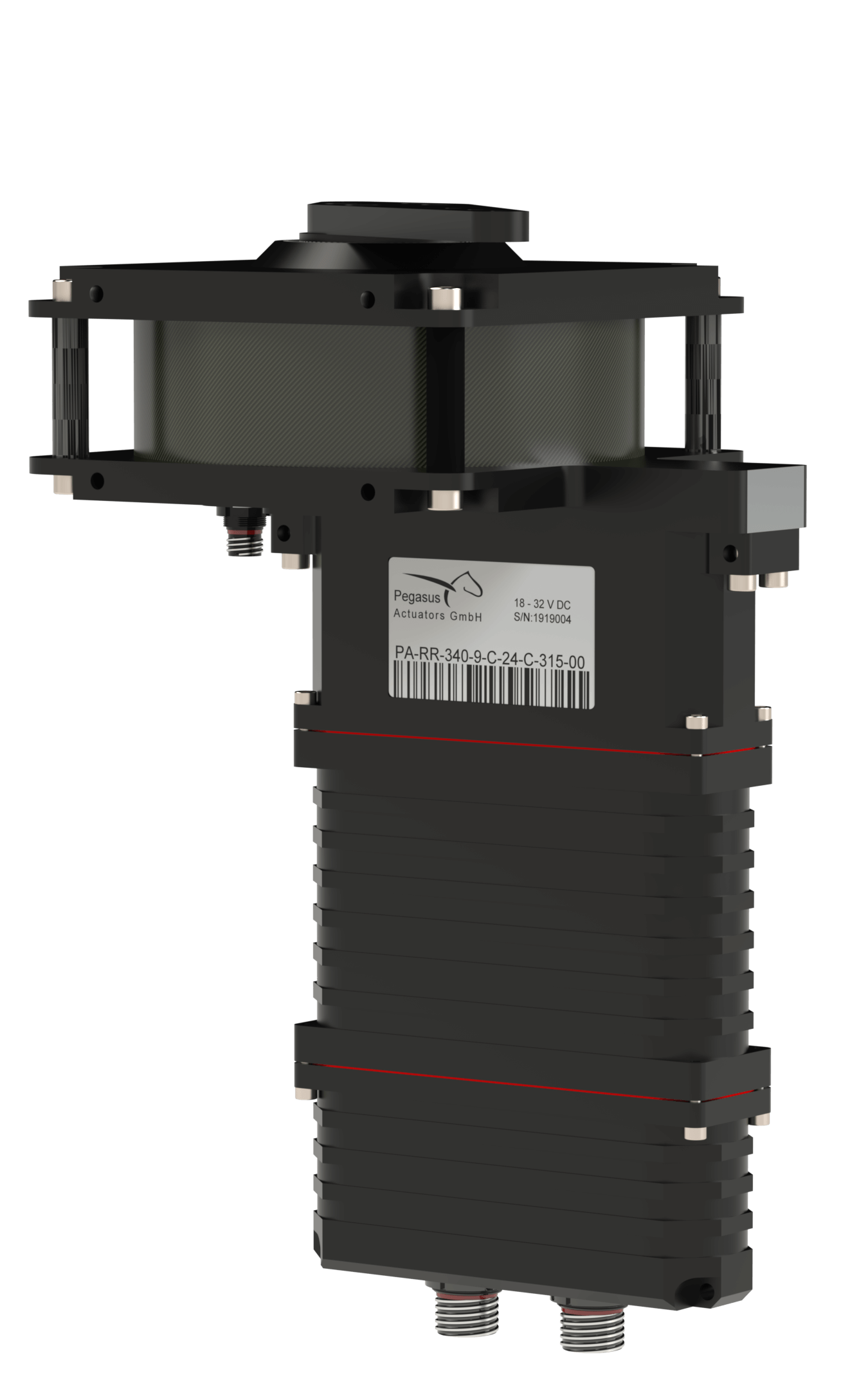

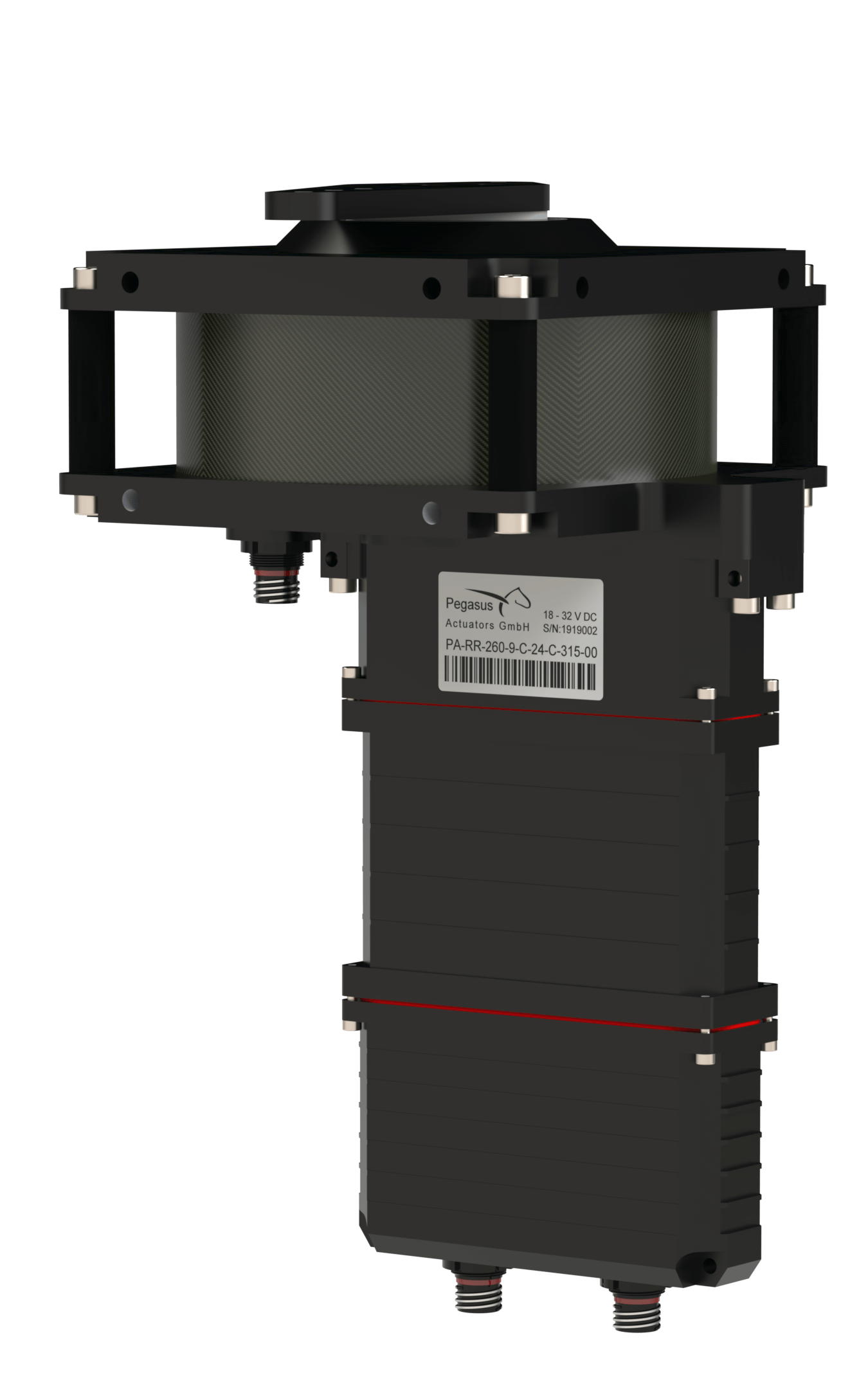

For optionally piloted vehicles (OPV) Pegasus offers a variety of actuators with additional (PA-RA-3 and PA-RA-4 type) electromagnetic clutch assemblies attached. These are available for all models starting with the PA-R-250-8 standard actuators and PA-RR-260-8 redundant actuators. The actuator output shaft can move freely with the electromagnetic clutch disengaged allowing the pilot to control the vehicle. In the event of a system failure, the clutch can be disengaged and the pilot has full control. The clutch output is directly coupled to the internal deflection angle sensor of the actuator, meaning that the OPV servos will not lose position if the clutch is disengaged. The clutch can also engage or disengage in any position.

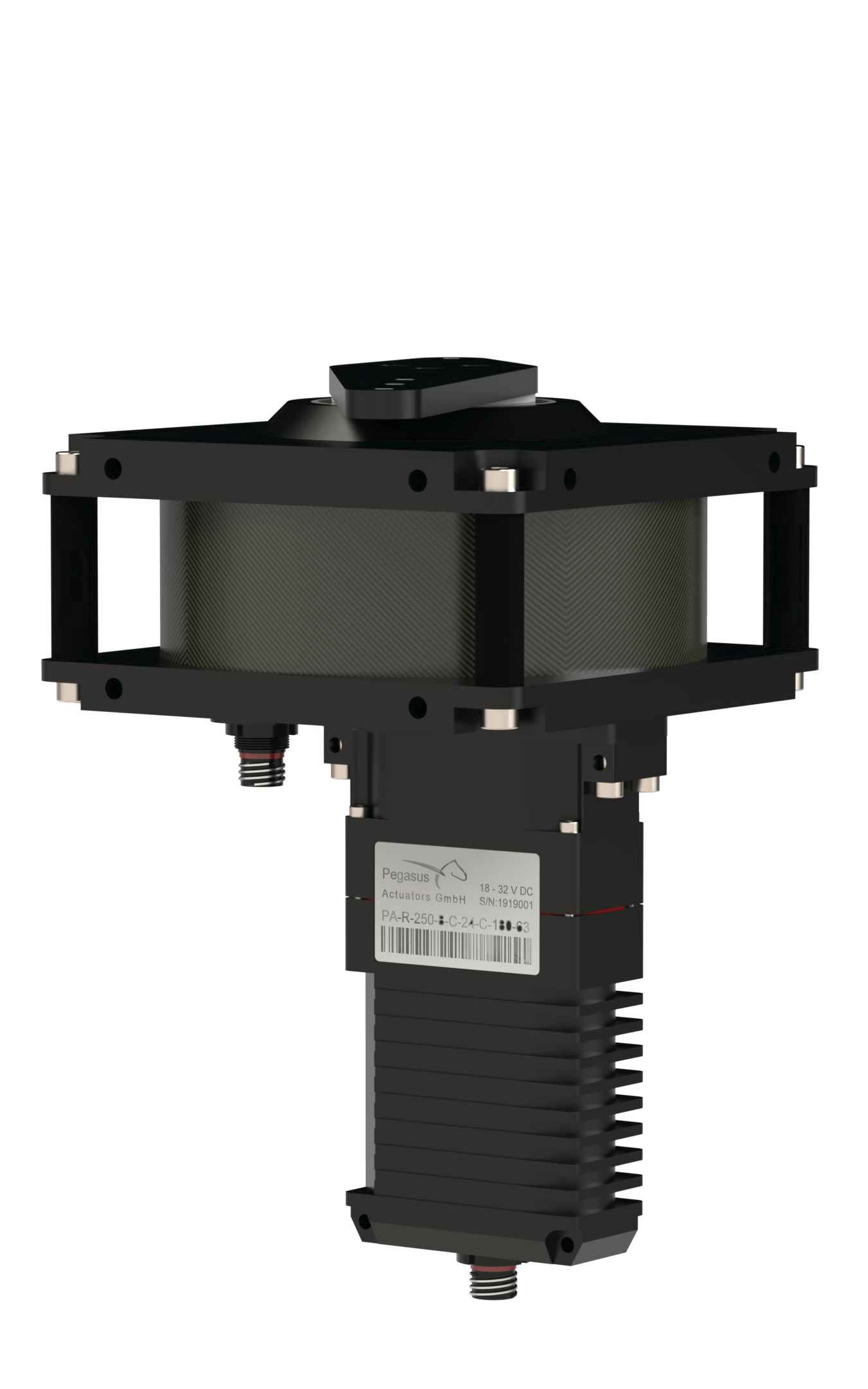

The Pegasus PA-R-250-8 OPV-servo is the right actuator for applications with high demands on powerful torque and high-speed positioning. With its BLDC - technology (brushless DC motor) and PA-ME contact-less sensor it combines extraordinary reliability and precision.
In conjunction with our PA-RA-3 electromagnetic OPV clutch-assembly this makes a perfect OPV-servo.
Characteristics:
Continuous torque | 300 Ncm |
Max. torque | 500 Ncm |
Operating voltage | 12 or 24 V DC |
No load speed |
195 °/sec @12VDC 210 °/sec @24VDC |

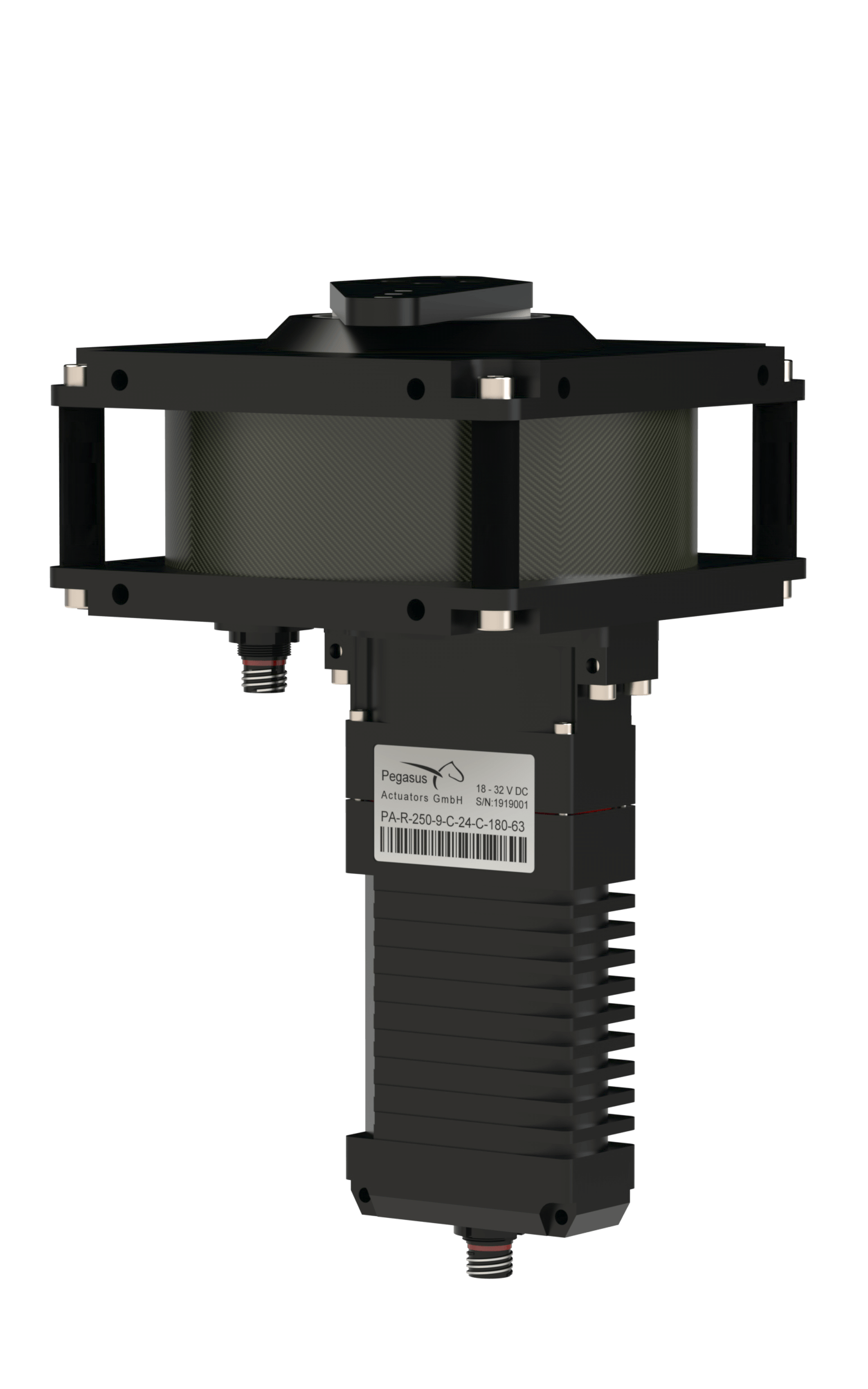

The PA-R-250-9-OPV-servo is the high-power version of the well proven PA-R-250-8-OPV-servo-actuator. We implemented a high-output-brushless DC motor and adjusted the gear-train as well as the servo case design. Its power-to-weight ratio is second to none.
In conjunction with our PA-RA-3 electromagnetic OPV clutch-assembly this makes a perfect OPV-servo.
Characteristics:
Continuous torque | 400 Ncm |
Max. torque | 700 Ncm |
Operating voltage | 24 V DC |
No load speed |
185 °/sec @24VDC |
The PA-R-340-7 servo has been a corner stone of our product range for many years.
In conjunction with our PA-RA-4 electromagnetic OPV clutch-assembly this makes an outstanding OPV-servo.
Characteristics:
Continuous torque | 850 Ncm |
Max. torque | 1800 Ncm |
Operating voltage | 12 or 24 V DC |
No load speed |
210 °/sec @12VDC 210 °/sec @24VDC |

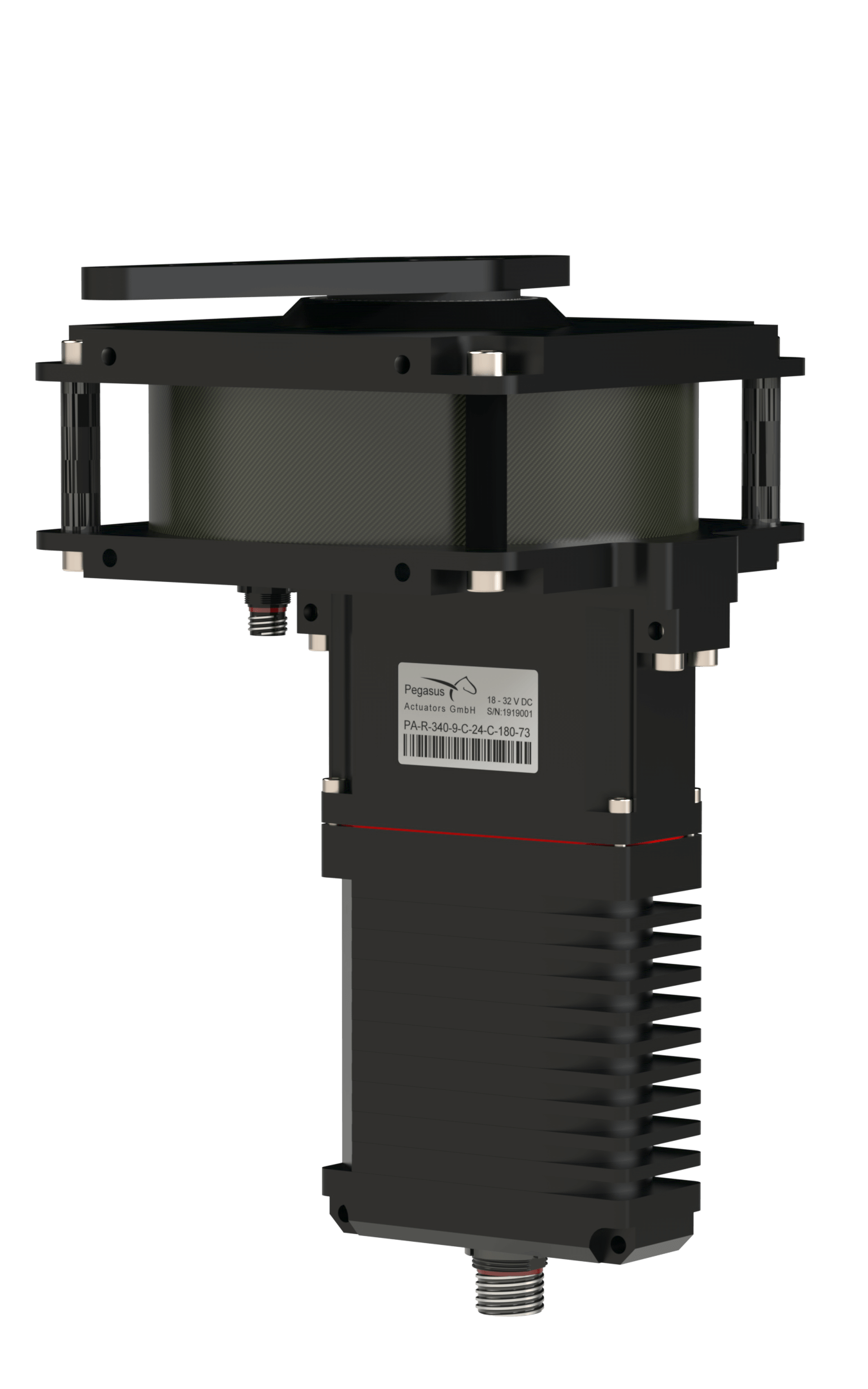

The PA-R-340-9 servo is the power version of our PA-R-340-7 type actuator.
In conjunction with our PA-RA-4 electromagnetic OPV clutch-assembly this makes an outstanding OPV-servo.
Characteristics:
Continuous torque | 1200 Ncm |
Max. torque | 2100 Ncm |
Operating voltage | 24 V DC |
No load speed |
205 °/sec @24VDC |

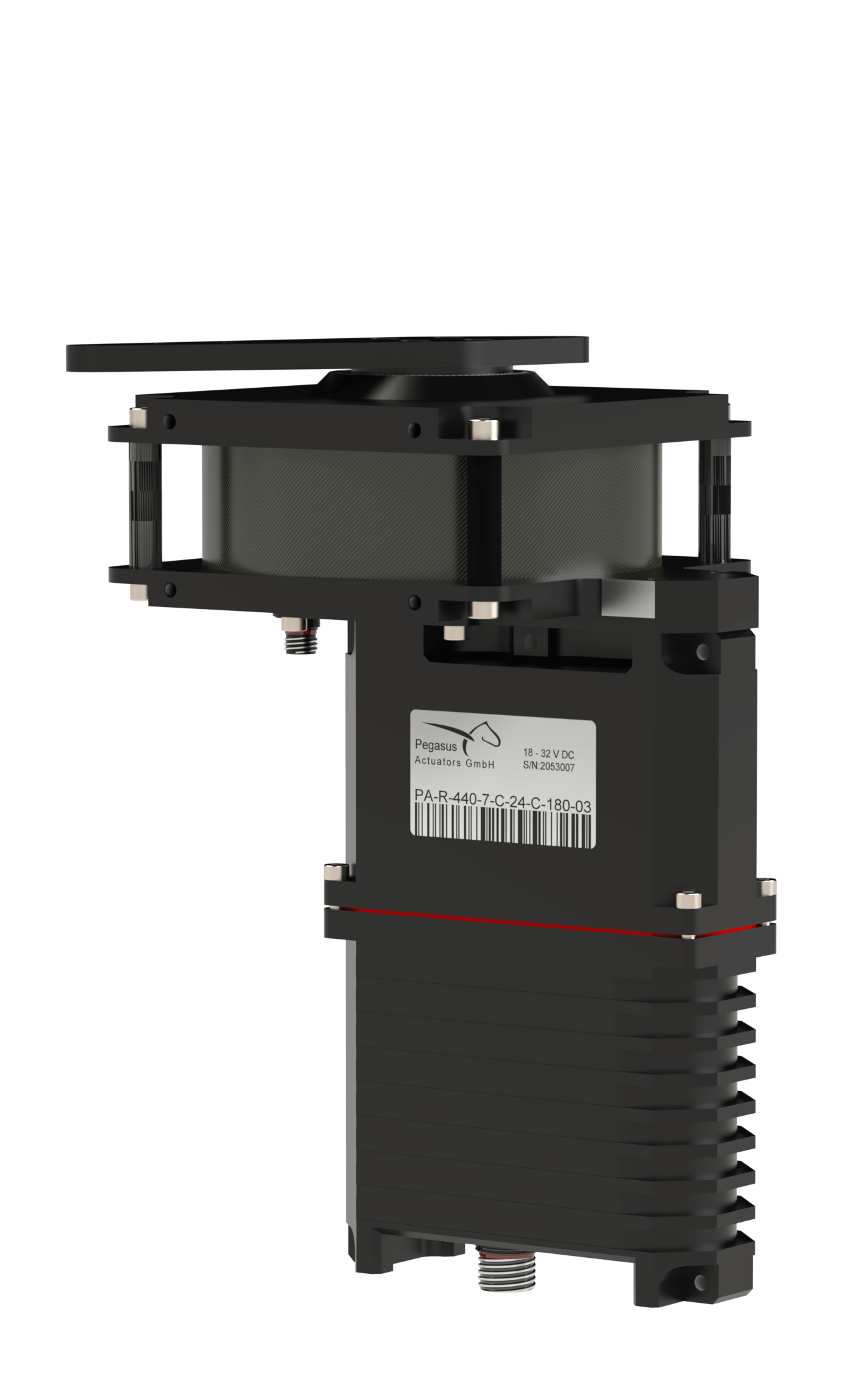

The Pegasus PA-R-440-7-OPV servo-actuator is based on our PA-R-440-7 industrial actuator, with 35Nm maximum torque it is the powerhouse of our product range.
In conjunction with our PA-RA-4 electromagnetic OPV clutch-assembly this makes a powerful OPV-servo.
Characteristics:
Continuous torque | 2000 Ncm |
Max. torque | 3500 Ncm |
Operating voltage | 24 V DC |
No load speed |
95 °/sec @24VDC |

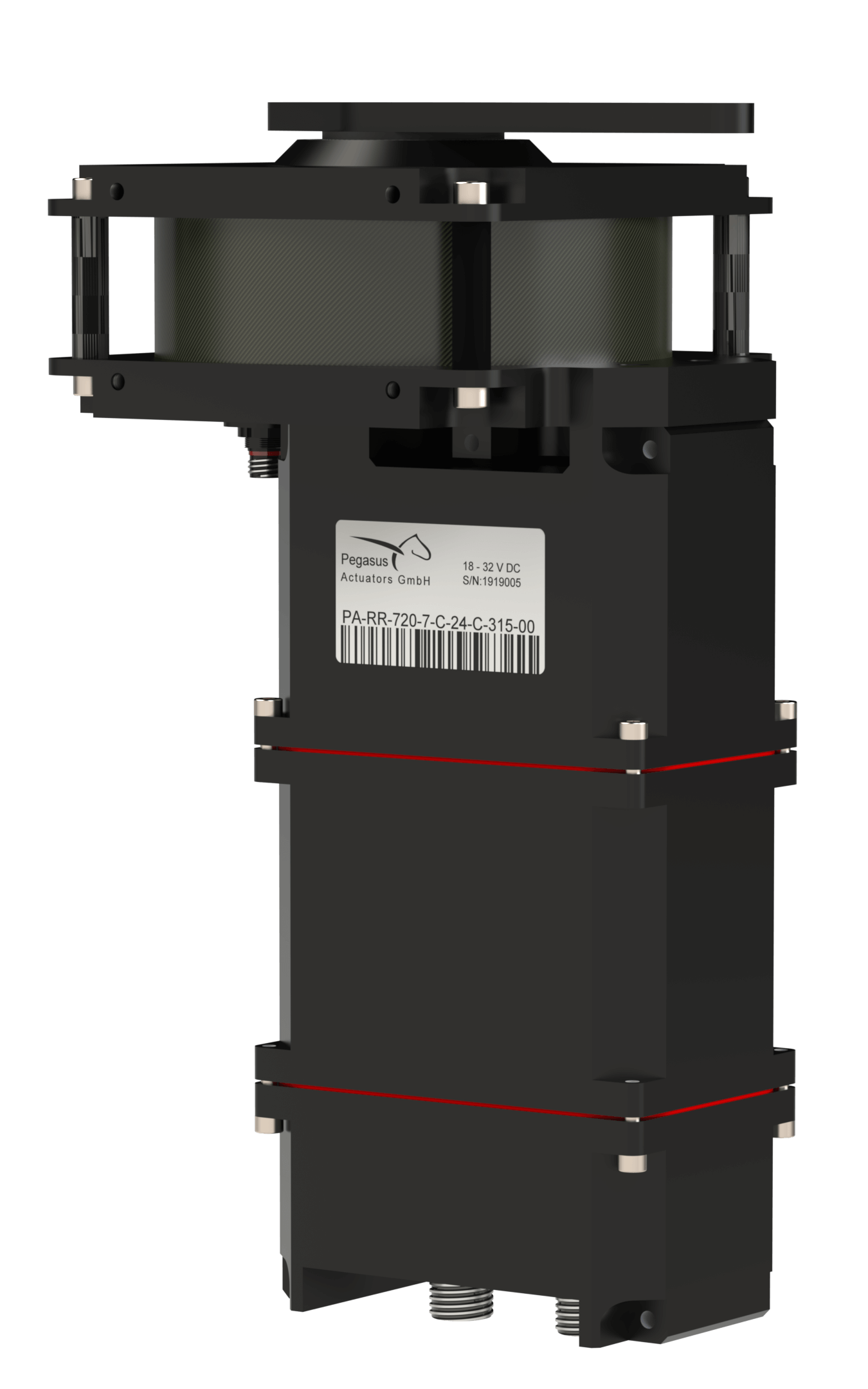

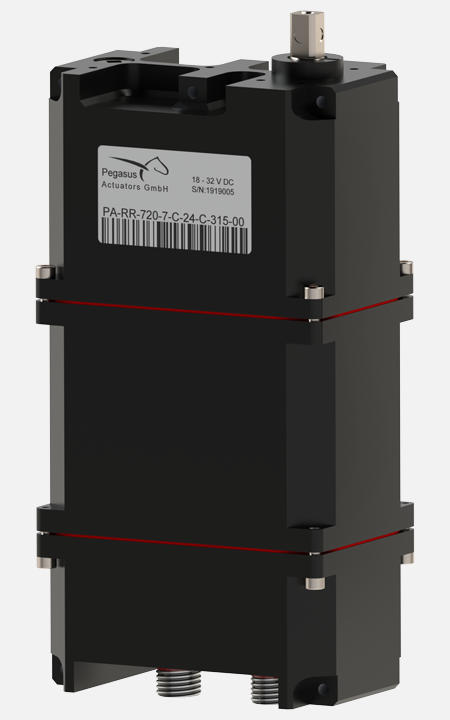

The Pegasus PA-RR-720-7 redundant servo-actuator is based on the main components of our well proven PA-RR-340-9 redundant servo-actuator. With its improved gear train bearings and servo case plus a modified hard- and software it can reach up to 35 Nm of sheer torque.
Characteristics:
Continuous torque | 2000 Ncm |
Max. torque | 3500 Ncm |
Operating voltage | 24 V DC |
No load speed |
90 °/sec @24VDC |
