For applications where the PA-RR-260-8 type-actuator seems to be just not powerful enough, the PA-RR-260-9 type is just what you need.

Pegasus redundant servo actuators are stand-alone solution. All redundancy related process decisions are performed internally by the actuator. The advantage: No additional engineering for modified autopilot systems, no redundancy related decisions to be proceeded by the autopilot, the only necessary requirement is that we need two identical channels for each redundant servo actuator. In case of a component failure a specific warning signal will be reported to the autopilot. Our redundant actuators will perform their full torque, rotational speed, and bandwidth – even after a single point failure incidence.

Characteristics

Continuous torque 400 Ncm (566,45 oz-in)
Max. torque > 700 Ncm (> 991,28 oz-in)
Operating voltage 24 V DC
No load speed 170 °/sec @24VDC
Weight 580 gr. (20,457 oz)
Travel angle 315° (PA-ME³ / redundant contactless angle sensor)
PC-Board dual servo controller - with digital position feedback
Signal Redundant RS485 data protocol
Motor dual BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 8 ball races with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation

Documents - Datasheets

general information for Redundant Actuators Download PDF 108 KB
drawing_PA-RR-260-9-C-24-C-315-00 Download PDF 197 KB
Datasheet Download PDF 682 KB

Accessories

PA-Control 3

PA-Control 3 programming tool to parameterize your redundant Pegasus Actuator.

PN-14950001 More Info

Programming cable for RR-260 Actuators

Programming / Adapter Cable to connect an RR-260 type Actuator to the PA-Control 3.

PN-14950005

PA-IF-260-9-01

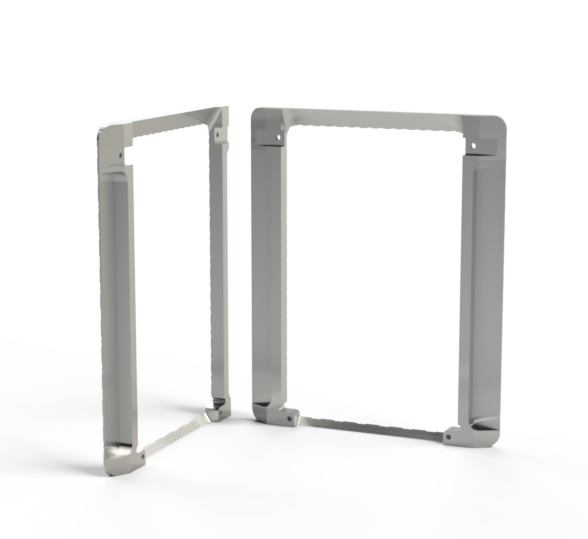

Installation frame for RR-260-9 Actuators.

PN-12609051

PA-UL-003

Aluminum universal lever with threads. For R-250 or RR-260 type Actuators, 6,5mm square

PN-12509033 Download PDF

PA-UL-007

Aluminum universal lever blank quarter. For R-250 or RR-260 type Actuators, 6,5mm square.

PN-12509034 Download PDF

PA-UL-103

Aluminum universal lever with grooves to create holes or threads and to shorten. For R-250 or RR-260 type Actuators, 6,5mm square.

PN-12509043 Download PDF

Extension cable for R-205, R-250, RR-260 Actuators, RA-OPV Clutches with Glenair 801 size 6-7 connector

1m cable with a mating Glenair Series 801 size 6-7 connector mounted and sealed on side 1 and an open end on side 2.

PN-12508101

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, olive

Glenair 801-007-16NF6-7SA, Aluminum / Cadmium with Olive Drab Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-72509003

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, black

Glenair 801-007-16ZNU6-7SA, Aluminum / Zinc-Nickel with Black Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-74957001
