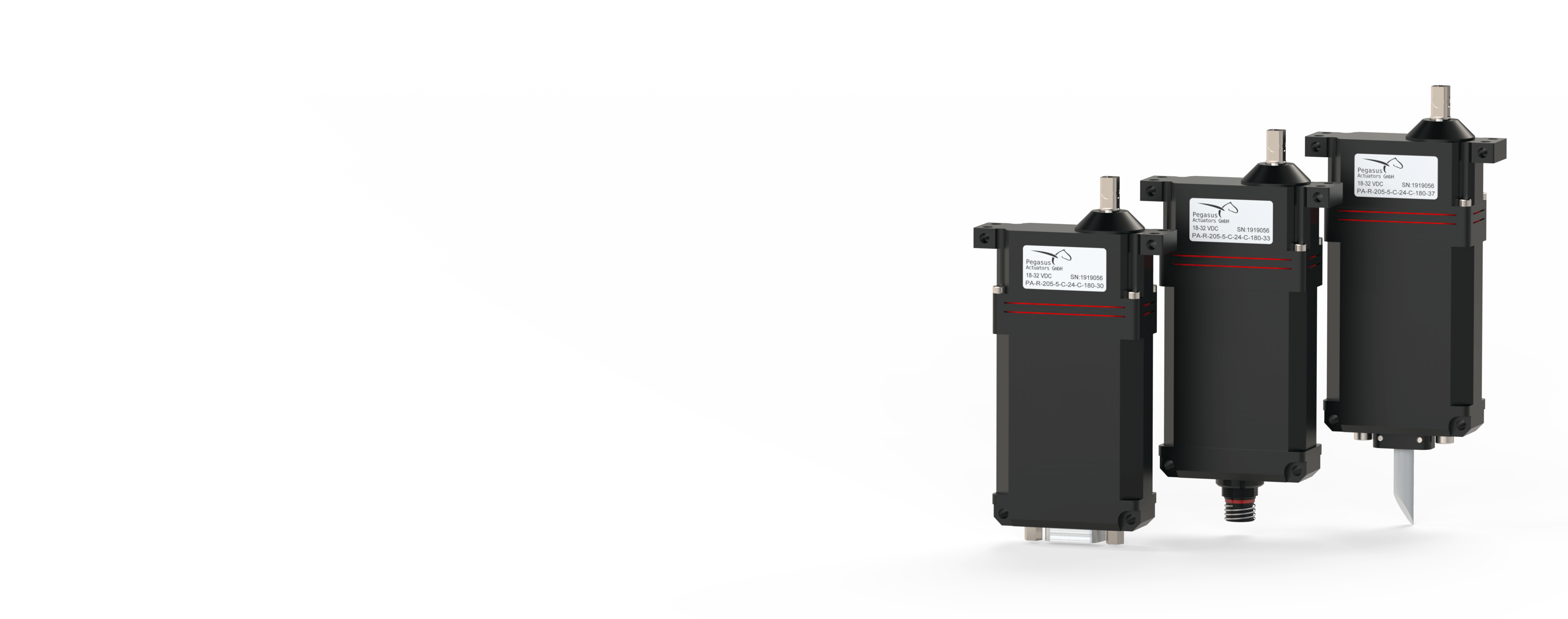

PA-R-205-5 Industrial Actuators

PA-R-205-5
Industrial Actuators

The PA-R-205-5 Actuator line is the BLDC version of our PA-R-205-4 and PA-R-205-6 series.

We designed and manufactured this actuator for applications that can operate at altitudes up to 60,000 feet.

Configuration and request     Start

Characteristics

Continuous torque 140 Ncm (198,26 oz-in)
Max. torque > 350 Ncm (> 495,64 oz-in)
Operating voltage 12 or 24 V DC
No load speed 150 °/sec @24VDC
Weight 200 gr. (7,054 oz)
Travel angle ± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Board digital - programmable - with differential, analog sensor feedback
Signal A: PWM signal, TTL level (standard configuraton),
B: PWM signal, differential (RS485 transceiver) (optional),
C: RS485 Data protocol (optional)
Motor BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 6 ball races with rigid or optional with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation

Documents - Datasheets

drawing_PA-R-205-5-X-XX-X-XXX-X0, Actuators with DE9 connector Download PDF 160 KB
drawing_PA-R-205-5-X-XX-X-XXX-X3, Actuators with Glenair 801 connector Download PDF 161 KB
drawing_PA-R-205-5-X-XX-X-XXX-X7, Actuators with cable pigtail Download PDF 163 KB
performance-graph_PA-R-205-5-X-24-X-XXX-XX Download PDF 115 KB

Accessories

PN-14850011

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info
PN-14850006

Adapter MTA100-DE9 for Actuators without connector

Actuators ordered with Pig Tail but without connector will be manufactured with a Tyco MTA100 connector, to connect those units to the PA-Control 2 the MTA100-DE9 adapter is required.

PN-14850006
PN-14850005

Programming cable for R-205, R-250 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-205 or R-250 type Actuators with Glenair Series 801 size 6-7 connector to the PA-Control 2.

PN-14850005
PN-12054025

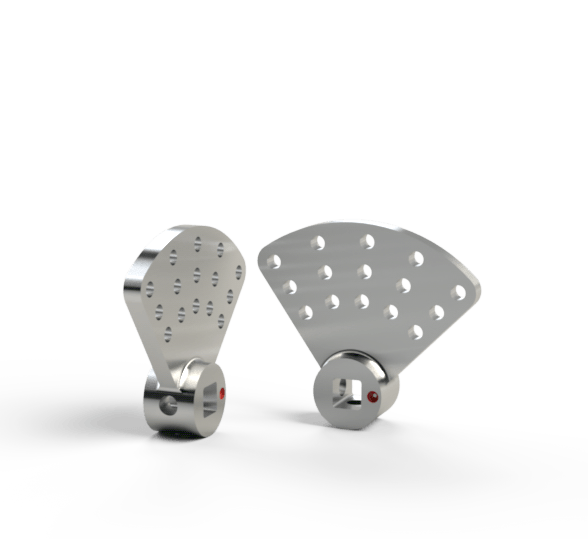

PA-UL-001

Aluminum universal lever with threads. For R-205 type Actuators, 5mm square.

PN-12054025 Download PDF
PN-12054026

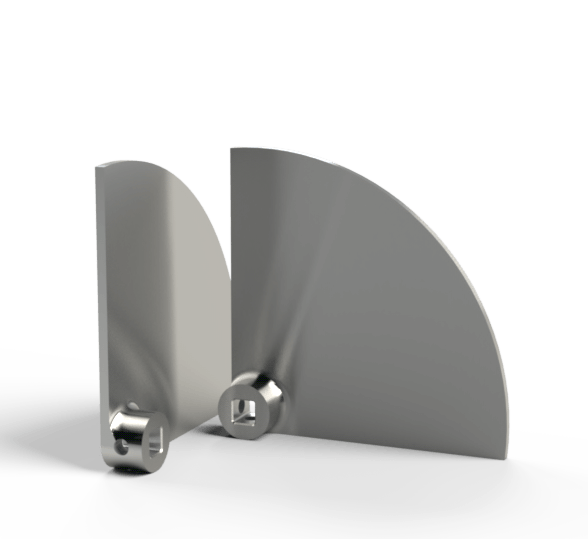

PA-UL-002

Aluminum universal lever blank quarter. For R-205 type Actuators, 5mm square.

PN-12054026 Download PDF
PN-12054045

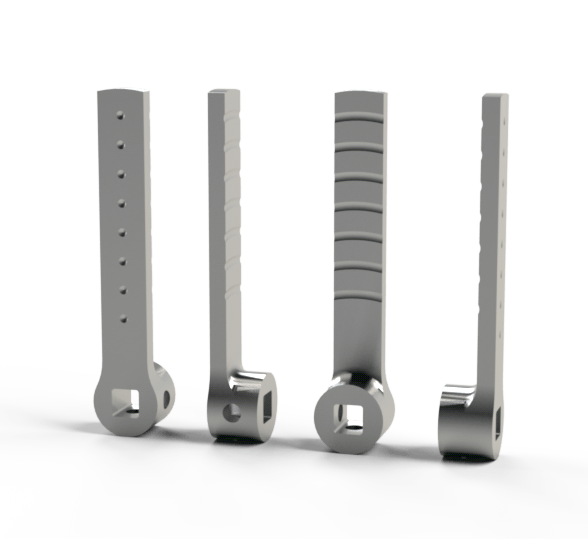

PA-UL-101

Aluminum universal lever with grooves to create holes or threads and to shorten. For R-205 type Actuators, 5mm square.

PN-12054045 Download PDF
PN-12508101

Extension cable for R-205, R-250, RR-260 Actuators, RA-OPV Clutches with Glenair 801 size 6-7 connector

1m cable with a mating Glenair Series 801 size 6-7 connector mounted and sealed on side 1 and an open end on side 2.

PN-12508101
PN-72509003

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, olive

Glenair 801-007-16NF6-7SA, Aluminum / Cadmium with Olive Drab Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-72509003
PN-74957001

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, black

Glenair 801-007-16ZNU6-7SA, Aluminum / Zinc-Nickel with Black Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-74957001
