The PEGASUS PA-R-205-4 comes in a comparatively small package but is suitable for all types of industrial and remote-controlled applications that require exceptional reliability and service lifetime.

Characteristics

Continuous torque 80 Ncm (113,29 oz-in)
Max. torque > 200 Ncm (> 283,22 oz-in)
Operating voltage 6, 12 or 24 V DC
No load speed 255 °/sec @12VDC
245 °/sec @24VDC
Weight 130 gr. (4,585 oz)
Travel angle ± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Board digital - programmable - with differential, analog sensor feedback
Signal PWM signal, TTL level (standard configuraton)
PWM signal, differential (RS485 transceiver) (optional)
or RS485data protocol (optional)
Motor DC motor, Neodym magnet
Gear train hardened steel, spur gear type, 6 ball races with rigid or optional with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation

Documents - Datasheets

Specifications Download PDF 464 KB
drawing_PA-R-205-4-X-XX-X-XXX-X0, Actuators with DE9 connector Download PDF 173 KB
drawing_PA-R-205-4-X-XX-X-XXX-X3, Actuators with Glenair 801 connector Download PDF 179 KB
drawing_PA-R-205-4-X-XX-X-XXX-X7, Actuators with cable pigtail Download PDF 220 KB
performance-graph_PA-R-205-4-X-12-X-XXX-XX Download PDF 115 KB
performance-graph_PA-R-205-4-X-24-X-XXX-XX Download PDF 114 KB

Accessories

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info

Adapter MTA100-DE9 for Actuators without connector

Actuators ordered with Pig Tail but without connector will be manufactured with a Tyco MTA100 connector, to connect those units to the PA-Control 2 the MTA100-DE9 adapter is required.

PN-14850006

Programming cable for R-205, R-250 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-205 or R-250 type Actuators with Glenair Series 801 size 6-7 connector to the PA-Control 2.

PN-14850005

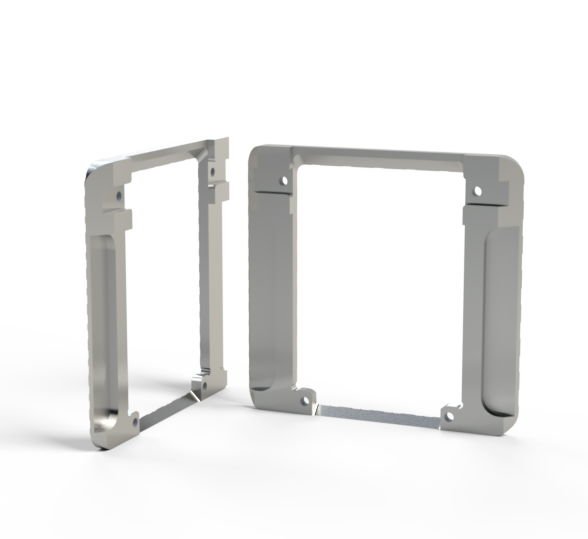

PA-IF-205-4-01

Installation frame for R-205-4 Actuators.

PN-12054051 Download PDF

PA-UL-001

Aluminum universal lever with threads. For R-205 type Actuators, 5mm square.

PN-12054025 Download PDF

PA-UL-002

Aluminum universal lever blank quarter. For R-205 type Actuators, 5mm square.

PN-12054026 Download PDF

PA-UL-101

Aluminum universal lever with grooves to create holes or threads and to shorten. For R-205 type Actuators, 5mm square.

PN-12054045 Download PDF

Extension cable for R-205, R-250, RR-260 Actuators, RA-OPV Clutches with Glenair 801 size 6-7 connector

1m cable with a mating Glenair Series 801 size 6-7 connector mounted and sealed on side 1 and an open end on side 2.

PN-12508101

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, olive

Glenair 801-007-16NF6-7SA, Aluminum / Cadmium with Olive Drab Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-72509003

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, black

Glenair 801-007-16ZNU6-7SA, Aluminum / Zinc-Nickel with Black Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-74957001
