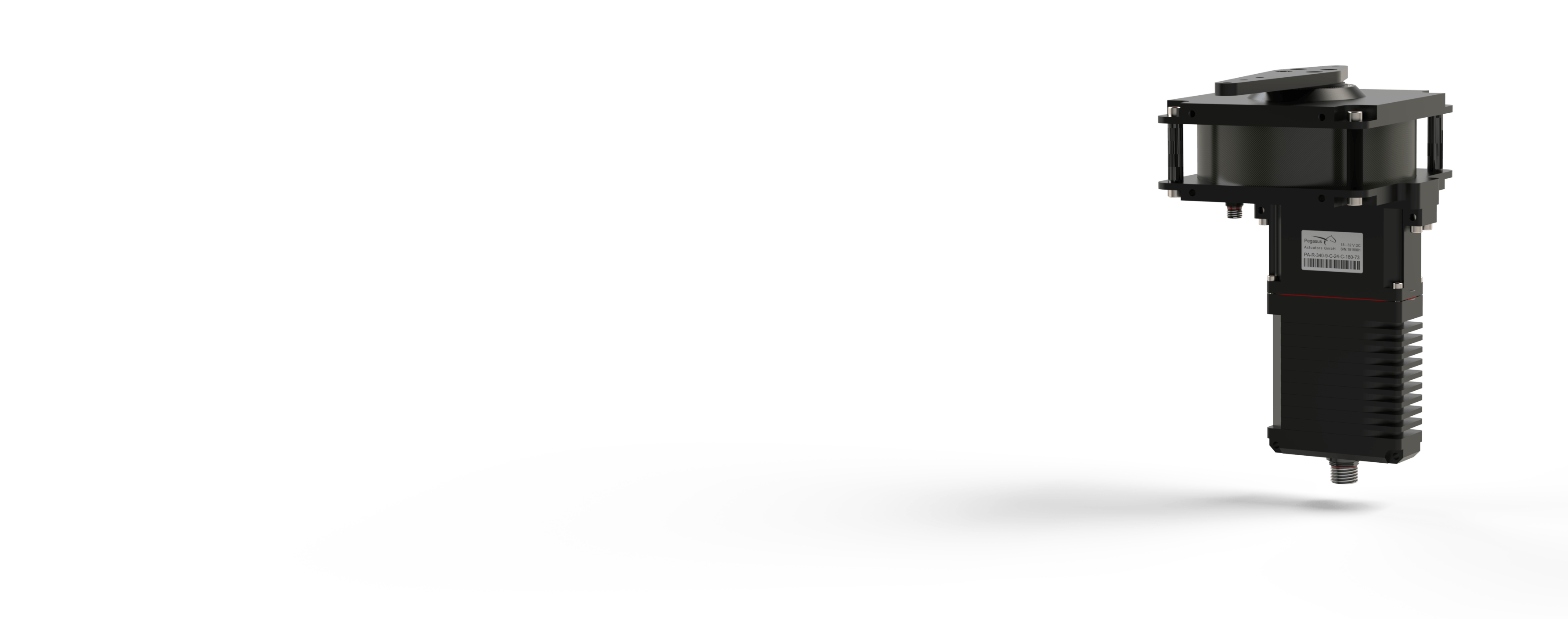

The PA-R-340-9 servo actuator is the power version of our PA-R-340-7 product, together with our PA-RA-4 electro magnetic clutch assembly it makes an eligible OPV servo actuator.

Characteristics

Continuous torque1200 Ncm (1699,34 oz-in)
Max. torque> 2100 Ncm (> 2973,85 oz-in)
Operating voltage24 V DC
No load speed 205 °/sec @24VDC
Weight930 gr. (32,801 oz)
Travel angle± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Boarddigital - programmable - with differential, analog sensor feedback
SignalPWM signal, TTL level (standard configuraton)
PWM signal, differential (RS485 transceiver) (optional)
or RS485data protocol (optional)
MotorBLDC motor, Neodym magnet
Gear trainhardened steel, spur gear type, 8 ball races with PA-SC overload protection output shaft
Casealuminum, water- and dust protected (IP67), with solid horizontal and vertical fixation

Documents - Datasheets

Data Sheet Download PDF1 MB
Dimensions with PA-SC Download PDF421 KB
Dimensions with rigid shaft Download PDF185 KB
Performance Graph Download PDF284 KB
Specifications Download PDF200 KB

Accessories

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info

Programming cable for R-340, R-440 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-340 or R-440 type Actuator with Glenair Series 801 size 10-202 connector to the PA-Control 2.

PN-14850009

Extension cable for R-340, R-440, RR-340, RR-720 Actuators with Glenair 801, 10-202 connector

1m cable with a mating Glenair Series 801 size 10-202 connector mounted and sealed on side 1 and an open end on side 2.

PN-13407101

Mating Connector incl. Pins For Actuators with Glenair 801-size 10-202, black

Glenair 801-007-16ZNU10-202SA, Aluminum / Zinc-Nickel with Black Chromate, including 8x Glenair 809-002 (AWG22-28) and 2x 809-111 (AWG16-20) Socket Contacts.
