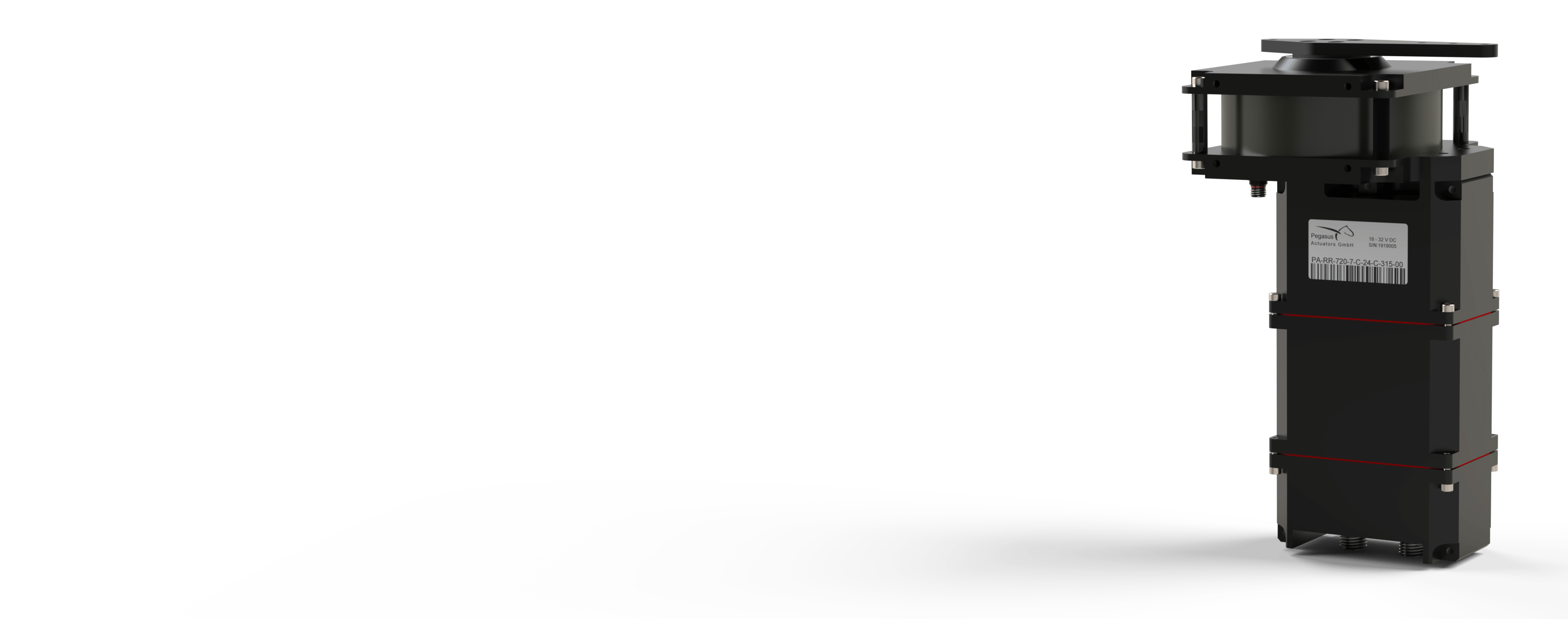

The Pegasus PA-RR-720-7 redundant servo-actuator is based on the main components of our well proven PA-RR-340-9 redundant servo-actuator. With its improved gear train bearings and servo case plus a modified hard- and software it can reach up to 35 Nm of sheer torque.

Pegasus redundant servo actuators are stand-alone solutions. All redundancy related process decisions are performed internally by the actuator. The advantage: No additional engineering for modified autopilot systems, no redundancy related decisions to be proceeded by the autopilot, the only necessary requirement is that we need two identical channels for each redundant servo actuator. In case of a component failure a specific warning signal will be reported to the autopilot. Our redundant actuators will perform their full torque, rotational speed, and bandwidth – even after a single point failure incidence.

In conjunction with our PA-RA-4 electromagnetic OPV clutch-assembly this makes a perfectly reliable OPV-servo.

Characteristics

Continuous torque 2000 Ncm (2832,24 oz-in)
Max. torque > 3500 Ncm (> 4956,42 oz-in)
Operating voltage 24 V DC
No load speed 90 °/sec @24VDC
Weight 4800 gr. (169,5 oz)
Travel angle 315° (PA-ME³ / redundant contactless angle sensor)
PC-Board dual servo controller - with digital position feedback
Signal Redundant RS485 data protocol
Motor dual BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 10 roller bearings with PA-SC overload protection output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical fixation
