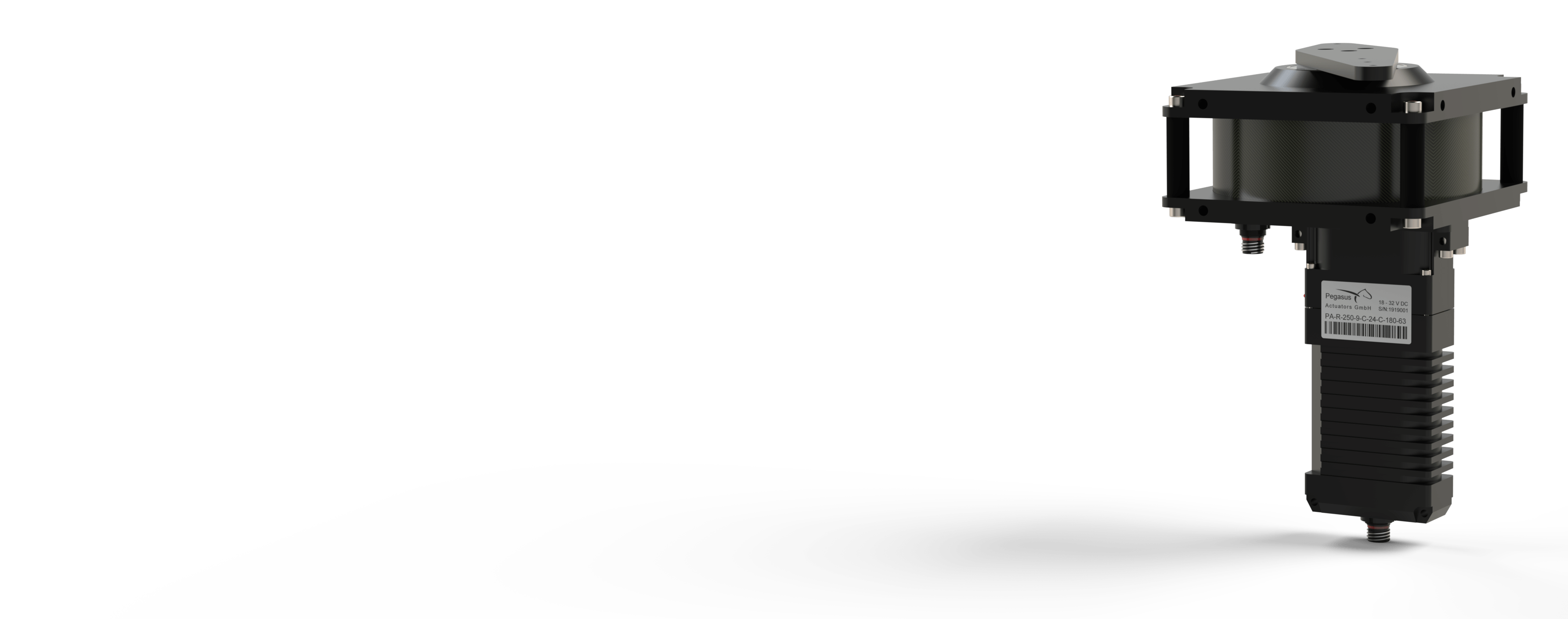

PA-R-250-9-OPV Actuators

PA-R-250-9-OPV
Actuators

The PA-R-250-9-OPV-servo is the high-power version of the well proven PA-R-250-8-OPV-servo-actuator. We implemented a high-output-brushless DC motor and adjusted the gear-train as well as the servo case design. Its power-to-weight ratio is second to none.

In conjunction with our PA-RA-3 electromagnetic OPV clutch-assembly this makes a perfect OPV-servo.

Configuration and request     Start

Characteristics

Continuous torque 400 Ncm (566,45 oz-in)
Max. torque > 700 Ncm (> 991,28 oz-in)
Operating voltage 24 V DC
No load speed 185 °/sec @24VDC
Weight 2335 gr. (82,36 oz)
Travel angle ± 90° (standard PA-ME / contactless angle sensor),
alternative angles on request
PC-Board digital - programmable - with differential, analog sensor feedback
Signal A: PWM signal, TTL level (standard configuraton),
B: PWM signal, differential (RS485 transceiver) (optional),
C: RS485 Data protocol (optional),
N: CANopen CiA 402 (optional)
Motor BLDC motor, Neodym magnet
Gear train hardened steel, spur gear type, 6 ball races with rigid output shaft
Case aluminum, water- and dust protected (IP67), with solid horizontal and vertical fixation

Documents - Datasheets

general_information_OPV_Actuators Download PDF 105 KB
drawing_PA-R-250-9-R-24-X-XXX-63-OPV-03 Download PDF 458 KB

Accessories

PN-14850011

PA-Control 2

PA-Control 2 programming tool to parameterize your industrial Pegasus Actuator.

PN-14850011 More Info
PN-14850006

Adapter MTA100-DE9 for Actuators without connector

Actuators ordered with Pig Tail but without connector will be manufactured with a Tyco MTA100 connector, to connect those units to the PA-Control 2 the MTA100-DE9 adapter is required.

PN-14850006
PN-14850005

Programming cable for R-205, R-250 Actuators with Glenair 801 connector

Programming / Adapter Cable to connect a R-205 or R-250 type Actuators with Glenair Series 801 size 6-7 connector to the PA-Control 2.

PN-14850005
PN-12508101

Extension cable for R-205, R-250, RR-260 Actuators, RA-OPV Clutches with Glenair 801 size 6-7 connector

1m cable with a mating Glenair Series 801 size 6-7 connector mounted and sealed on side 1 and an open end on side 2.

PN-12508101
PN-72509003

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, olive

Glenair 801-007-16NF6-7SA, Aluminum / Cadmium with Olive Drab Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-72509003
PN-74957001

Mating Connector incl. Pins For Actuators with Glenair 801-size 6-7, black

Glenair 801-007-16ZNU6-7SA, Aluminum / Zinc-Nickel with Black Chromate, including 7x Glenair 809-002 (AWG22-28) Socket Contacts.

PN-74957001
